Item Description |
|
|
Type |

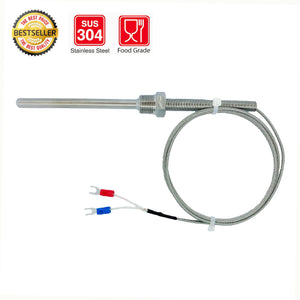

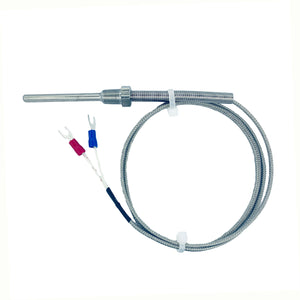

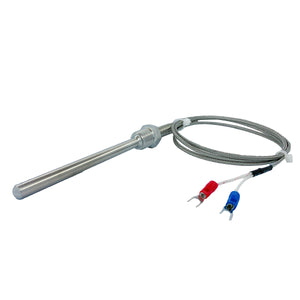

J Type Thermocouple |
|
Measuring Temperature |
0 ~ 750 ℃ ( 32 ~ 1380℉) |
|
Probe Length |
100mm (4 inch) |
|
Probe Diameter |
8mm (0.3 inch) |
|
Threads Size |
3/8” NPT Threads |
|
Probe Material |
Stainless Steel 304 |
|
Cable Length |
1m (3.3’),2m (6.6’),3m (9.9’),4m (13.2’),5m (16.5’) |
|
Color Code |

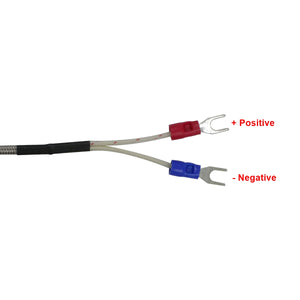

Red Stripe (+) ; White (-) |
|
Cable Shealth |
Fiberglass overbraided with Stainless Steel |
|
Connector |
Spade Connectors |
Features
100% Brand New Item
Compatible with all temperature meter, gauges or controller with J Type input
Quotations of different lengths or diameter probe and lead wires are available upon request.
