Features
- 100% Brand New
- Support Multi-brand cars, works with all 1996 and later OBDII compliant US, European and Asian vehicles.

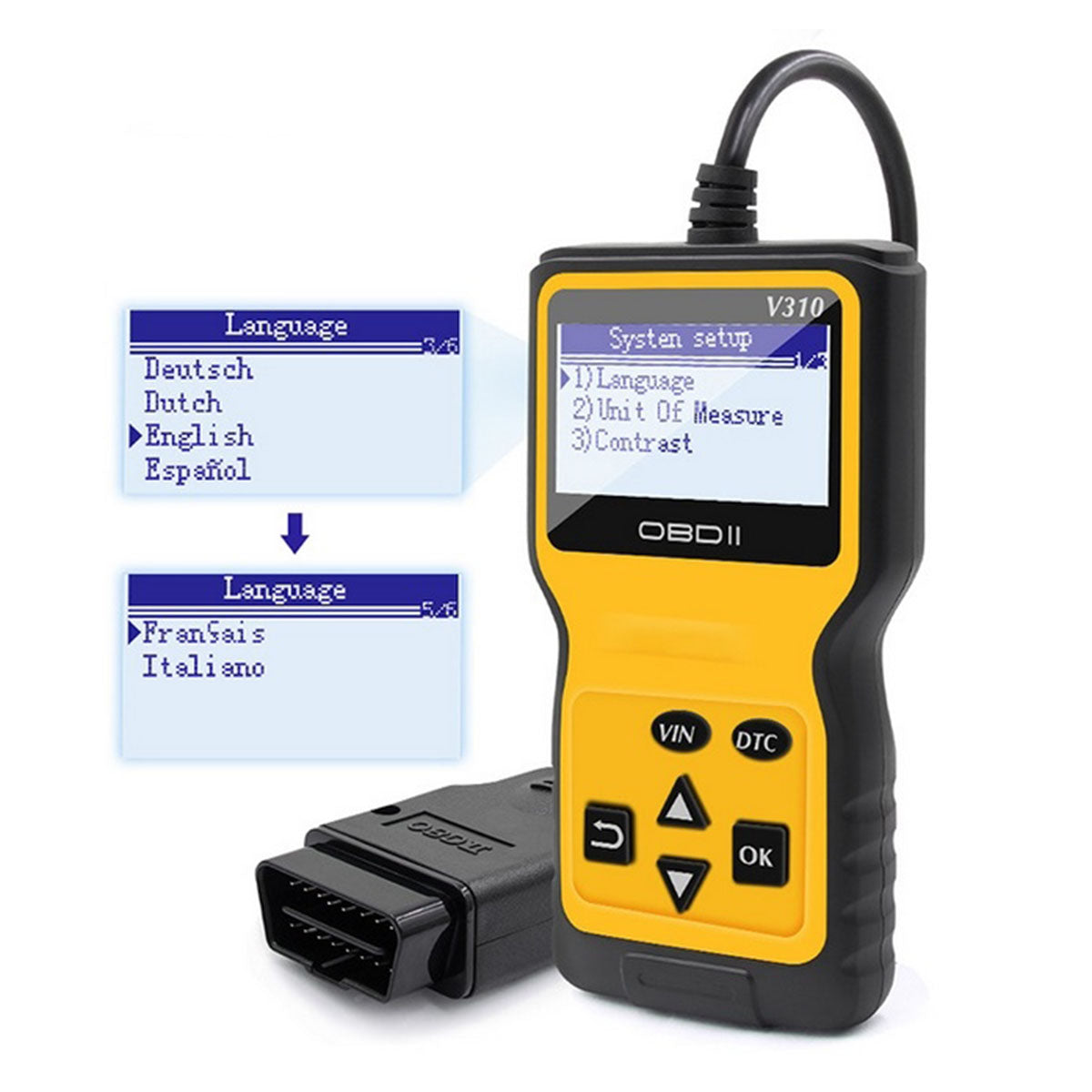

- Multi-language supported: English, French, Italian, Spanish, German, Dutc

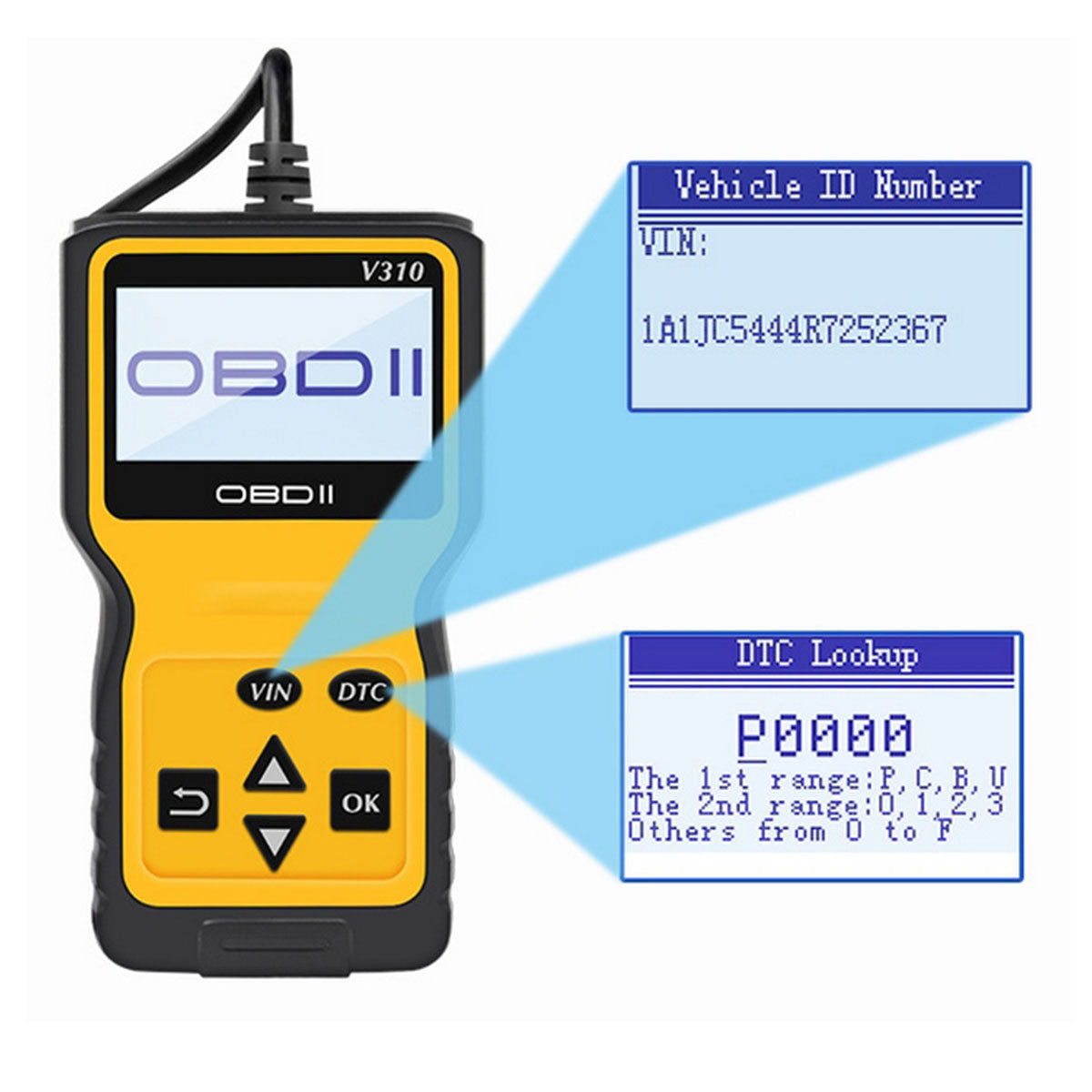

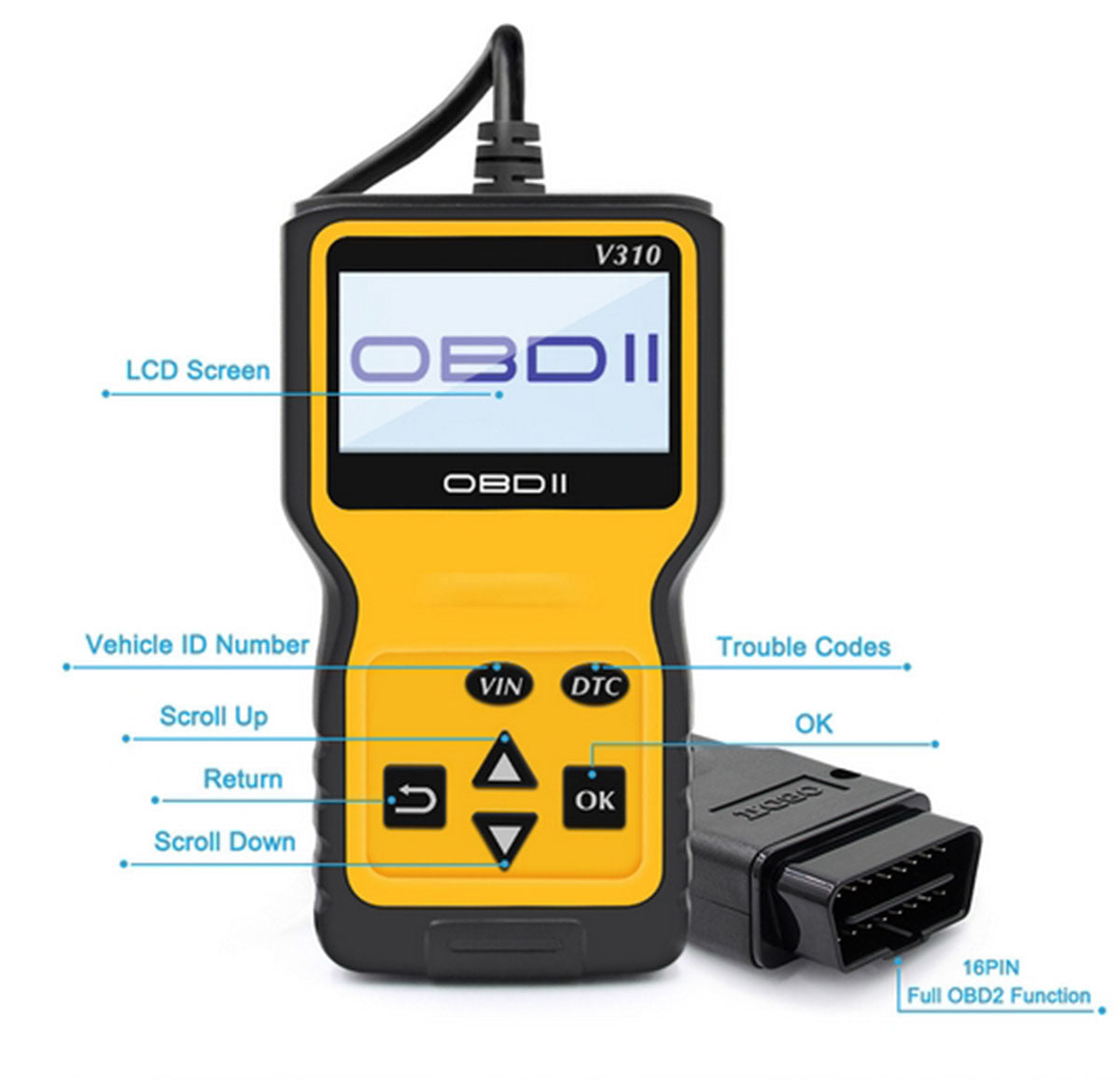

- Supporting shortcut key queries.(VIN,DTC)

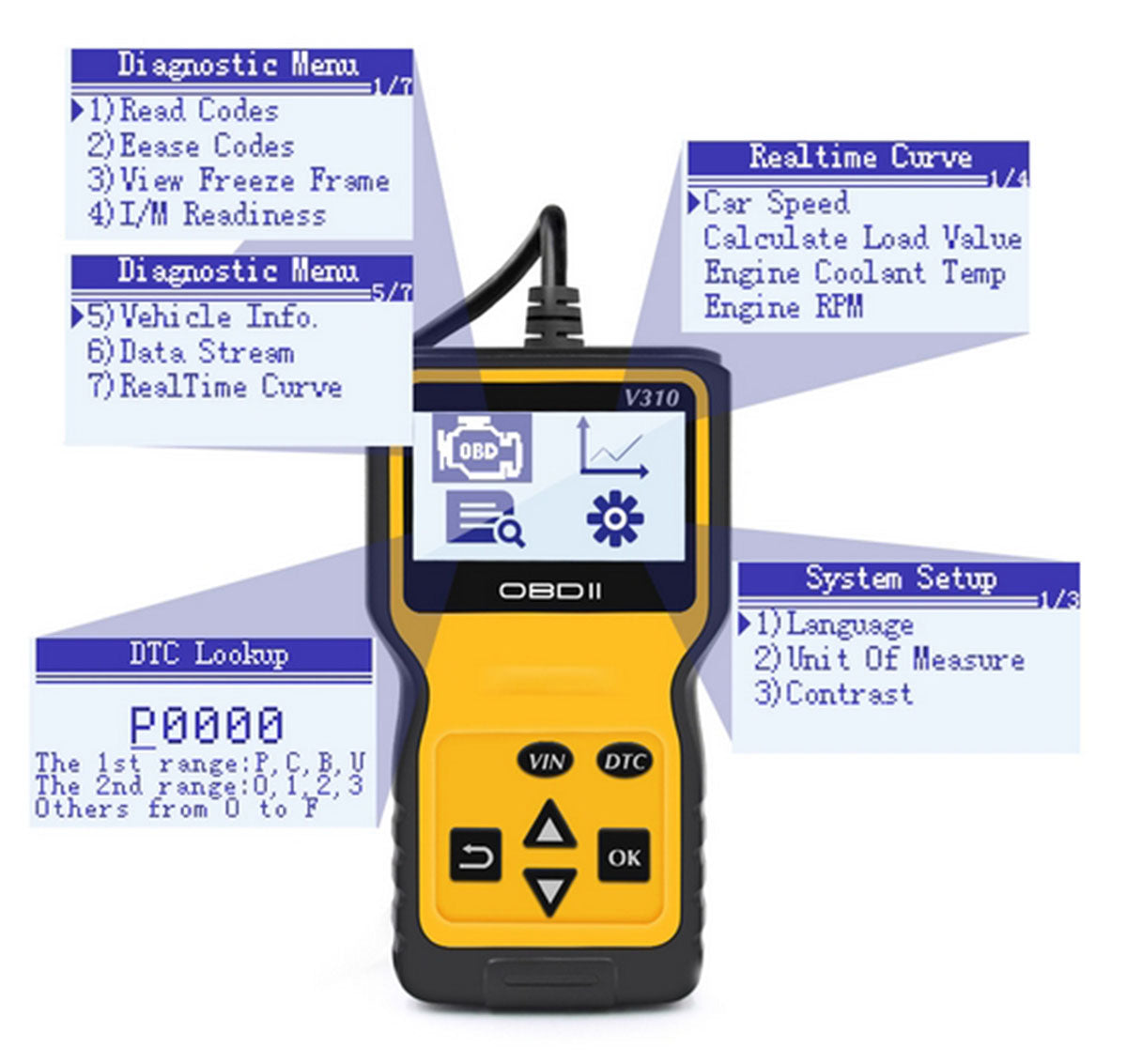

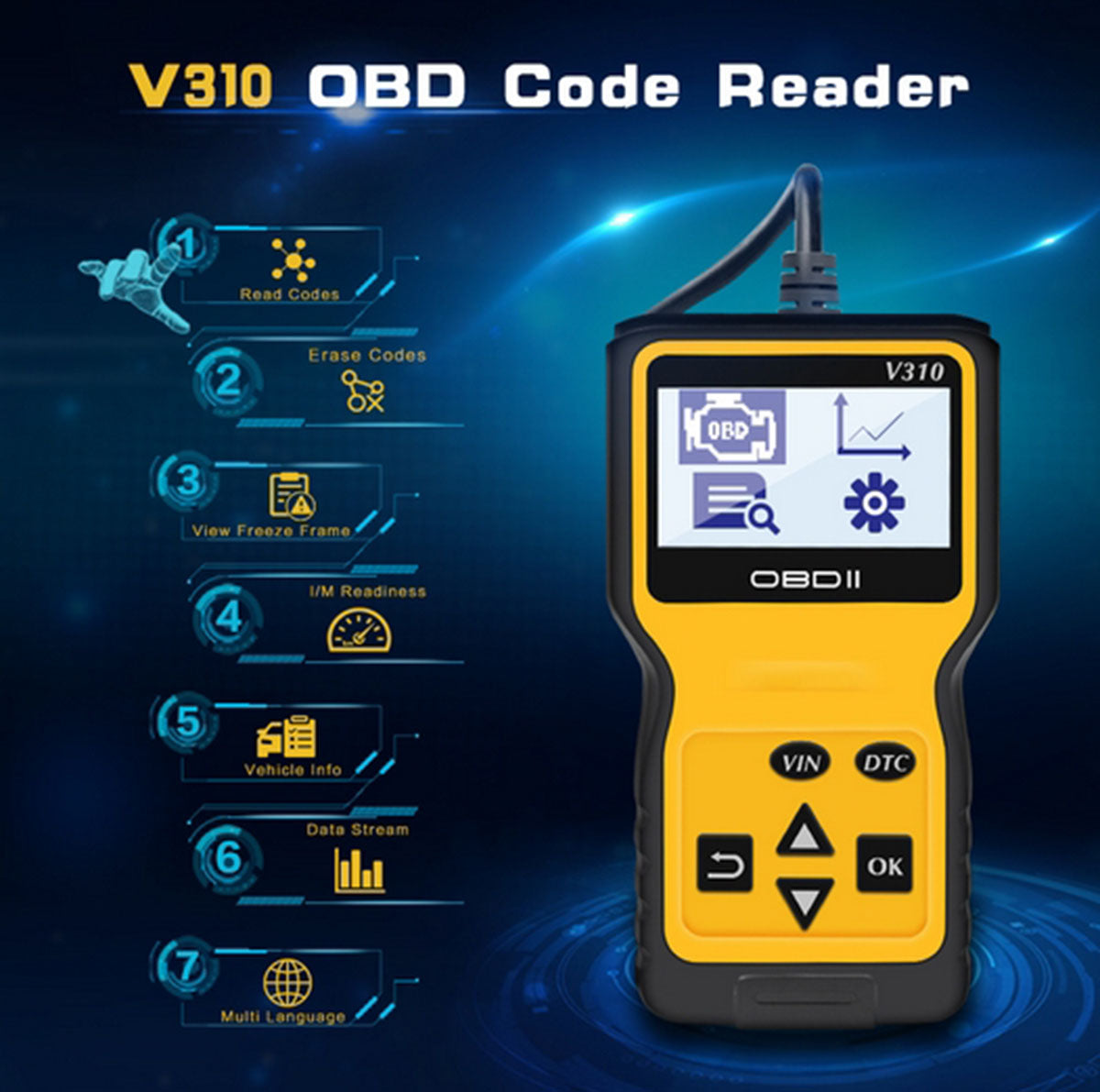

- Support Read/Clear diagnostic trouble codes,I / M readiness,Vehicle InFo,turn off the MIL ("Check Engine" light) an so on.
- Display current sensor data, including:
- Engine RPM
- Calculated Load Value
- Coolant Temperature
- Fuel System Status
- Vehicle Speed
- Short Term Fuel Trim
- Long Term Fuel Trim
- Intake Manifold Pressure
- Timing Advance
- Intake Air Temperature
- Air Flow Rate
- Absolute Throttle Position
- Oxygen sensor voltages/associated short term fuel trims
- Fuel System status
- Fuel Pressure
Multi-Protocol Support:
- SAE J1850 PWM (41.6Kbaud)
- SAE J1850 VPW (10.4Kbaud)
- ISO9141-2(5 baud init, 10.4Kbaud)
- ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
- ISO14230-4 KWP (fast init, 10.4 Kbaud)
- ISO15765-4 CAN (11bit ID, 500 Kbaud)
- ISO15765-4 CAN (29bit ID, 500 Kbaud)
- ISO15765-4 CAN (11bit ID, 250 Kbaud)
- ISO15765-4 CAN (29bit ID, 250 Kbaud)

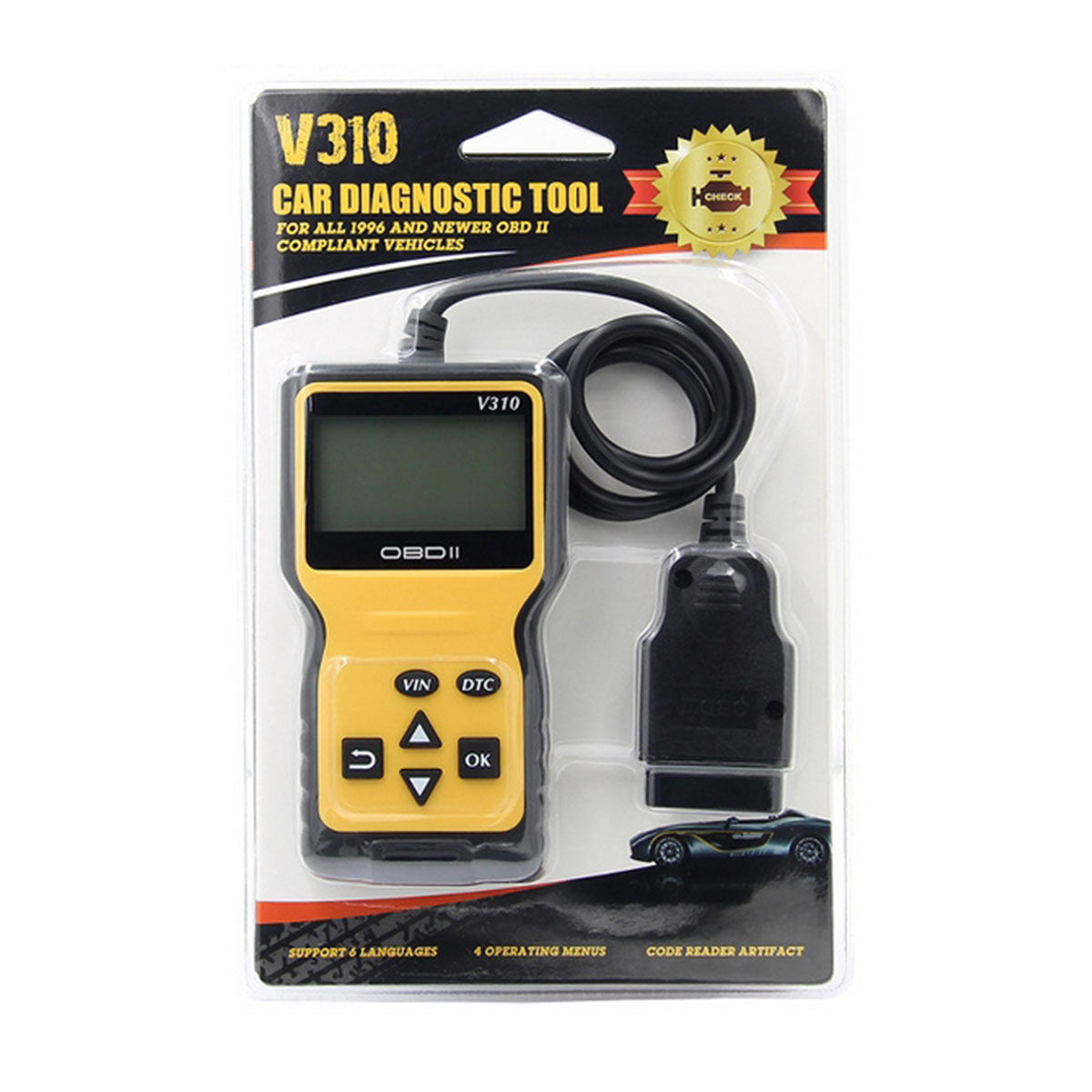

V310 Specifications:
Display:Badit,128 x64 pixel display
Operating Temperature: 0~60℃( 32~140℉)
Storage Temperature:-20 ~70℃(-4 ~158℉)
External Power:8.0 to 15.0 Volts provided via vehicle battery

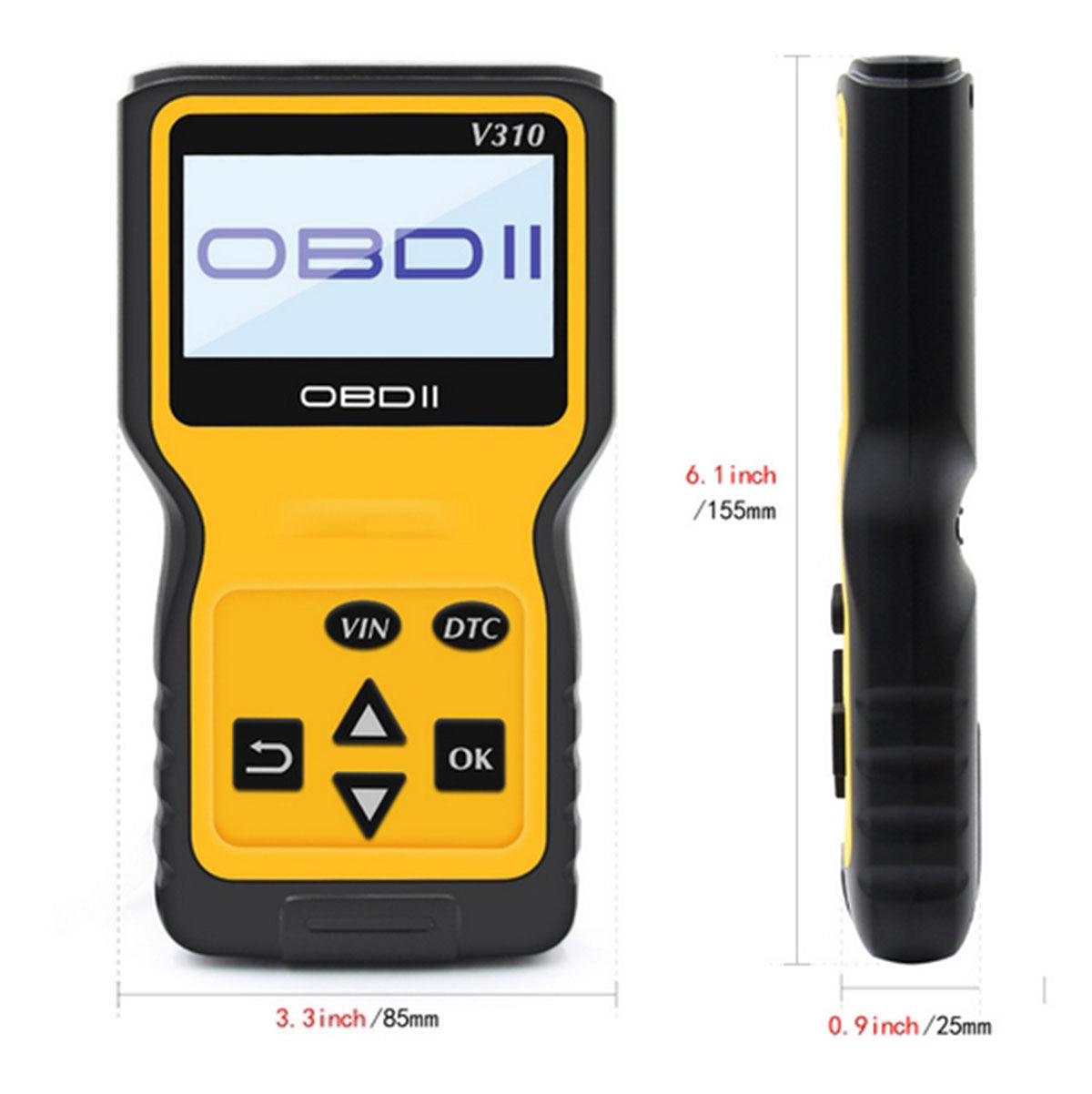

Dimensions:28*18.5*5CM
Weight:0.34Kg

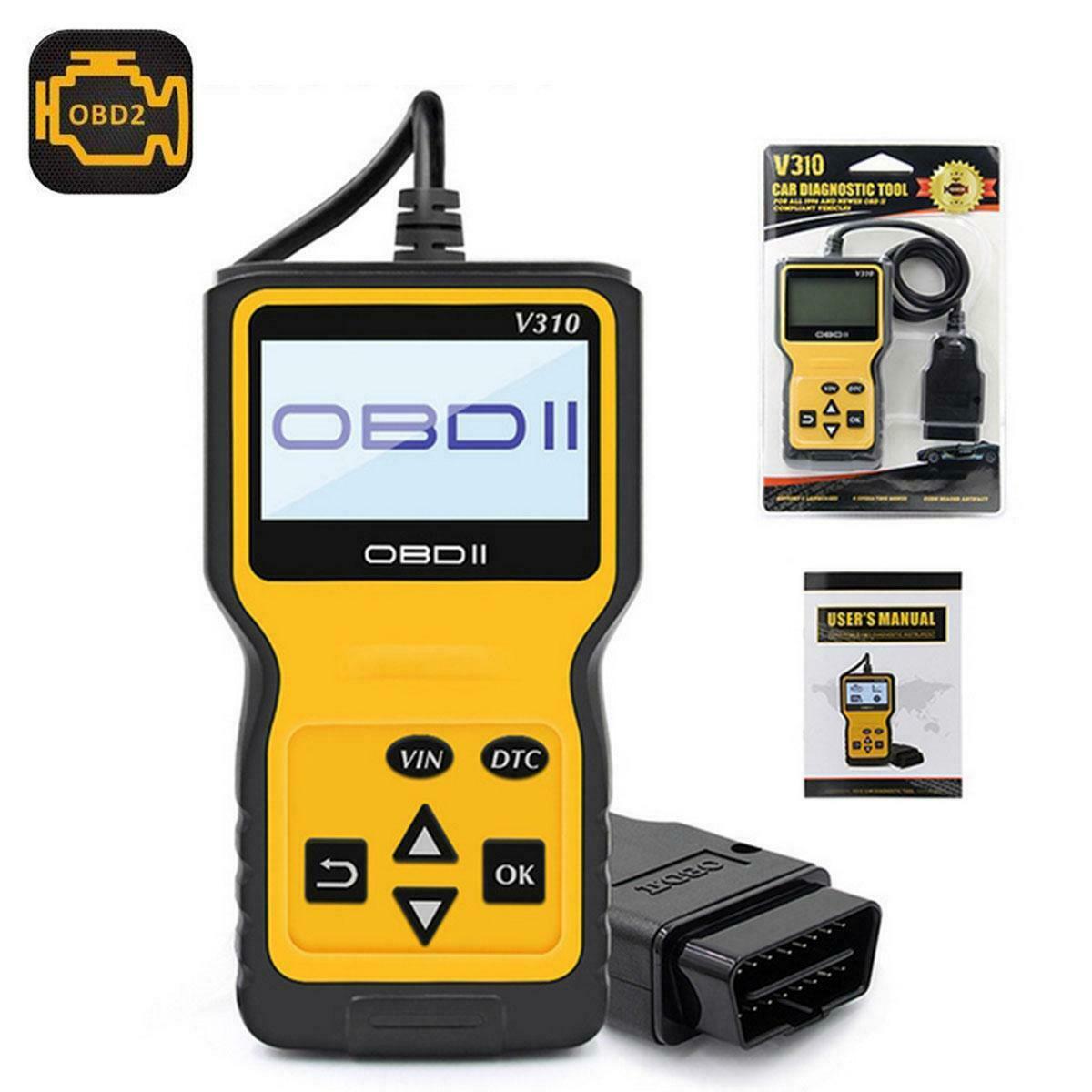

Package Includes:
1pc x V310
1pc x User Manual
