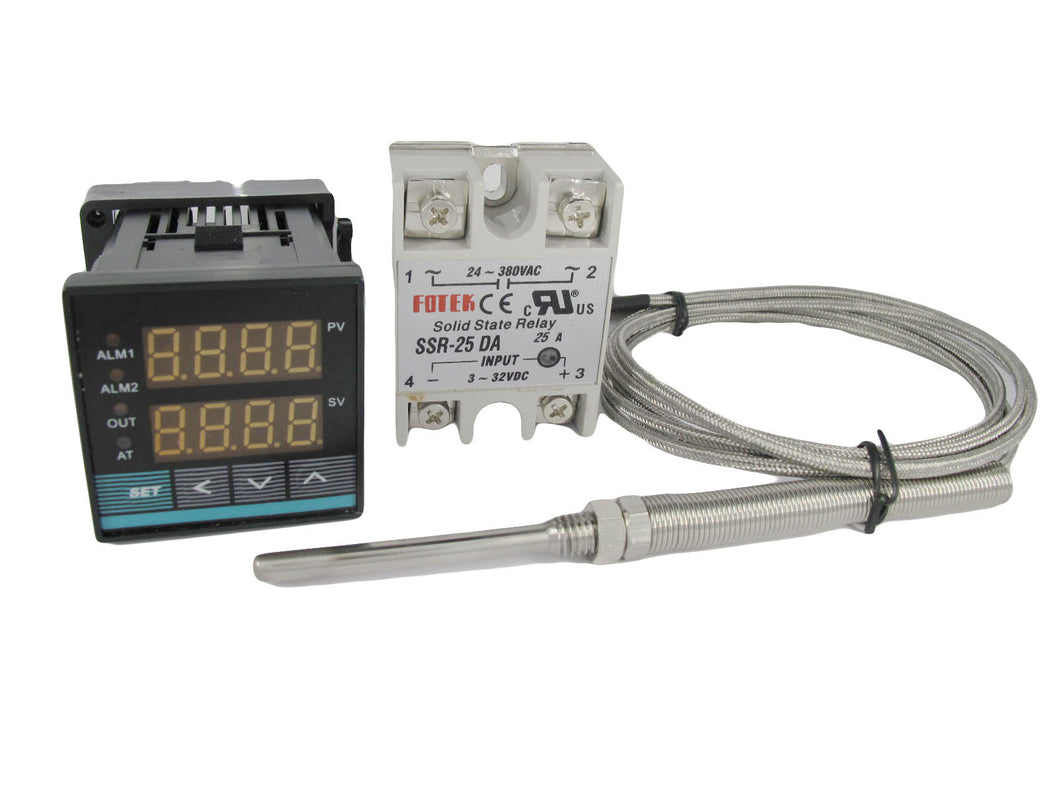

Universal PID Temperature Controller (48*48) with SSR & High Temperature Probe (℃ / ℉)

Input Sensors

K,J,R,S,B,E N,T,PT100,Cu50…

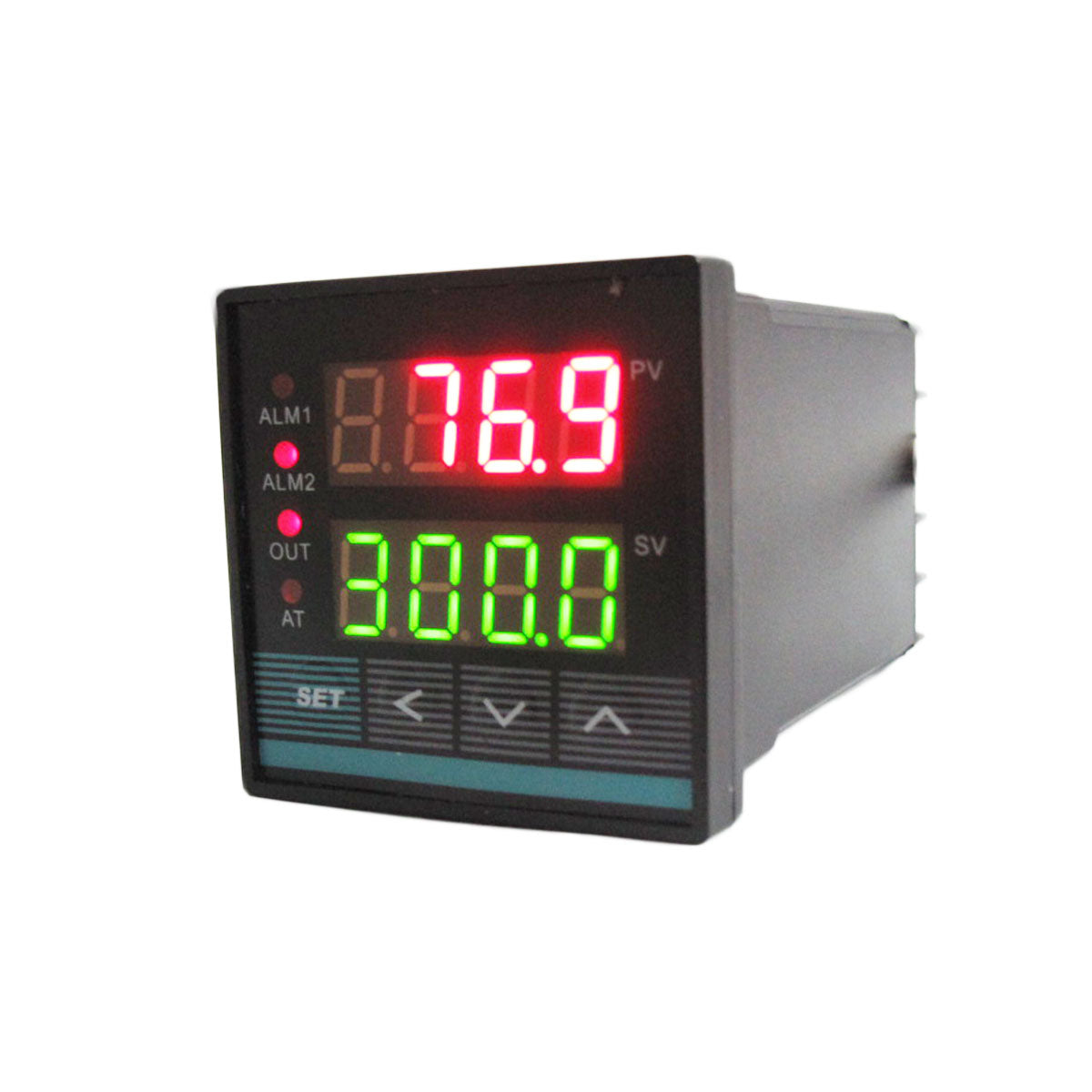

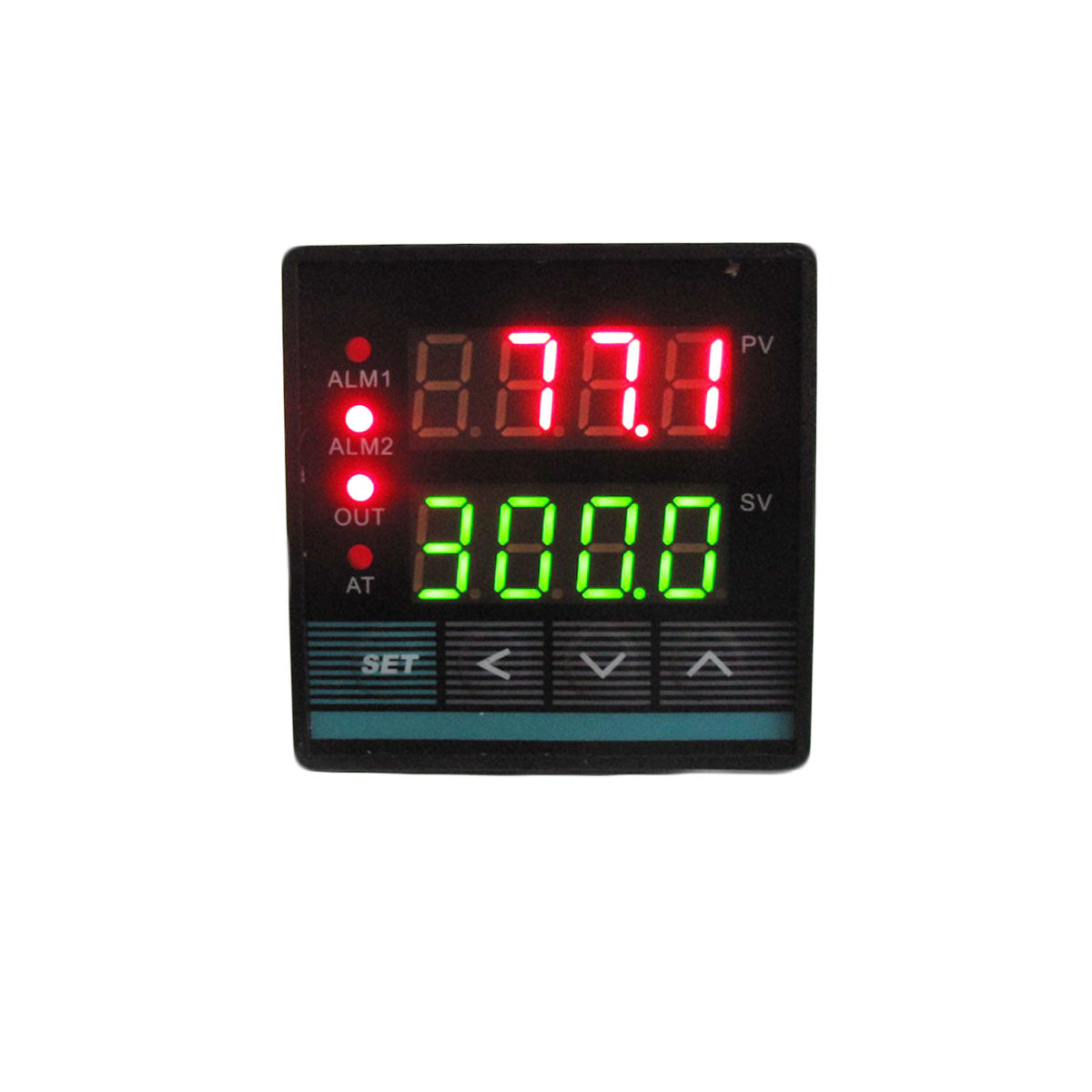

Display

Celcius / Fahrenheit (switchable by settings)

Output  1

SSR (9VDC, 20mA)

Alarm Output  1

Relay 5A (250VAC)

Alarm Output  2

Relay 5A (250VAC)

Control Method

PID control

Sampling Time

0.5 second

Power Supply

90 ~ 260 VAC 50/60Hz

Power Consumption

4W

Ambient Temperature

-10 ~ 50 degree Celcius /14 ~ 122 degree Fahrenheit

Ambient Humidity

35 - 85 %

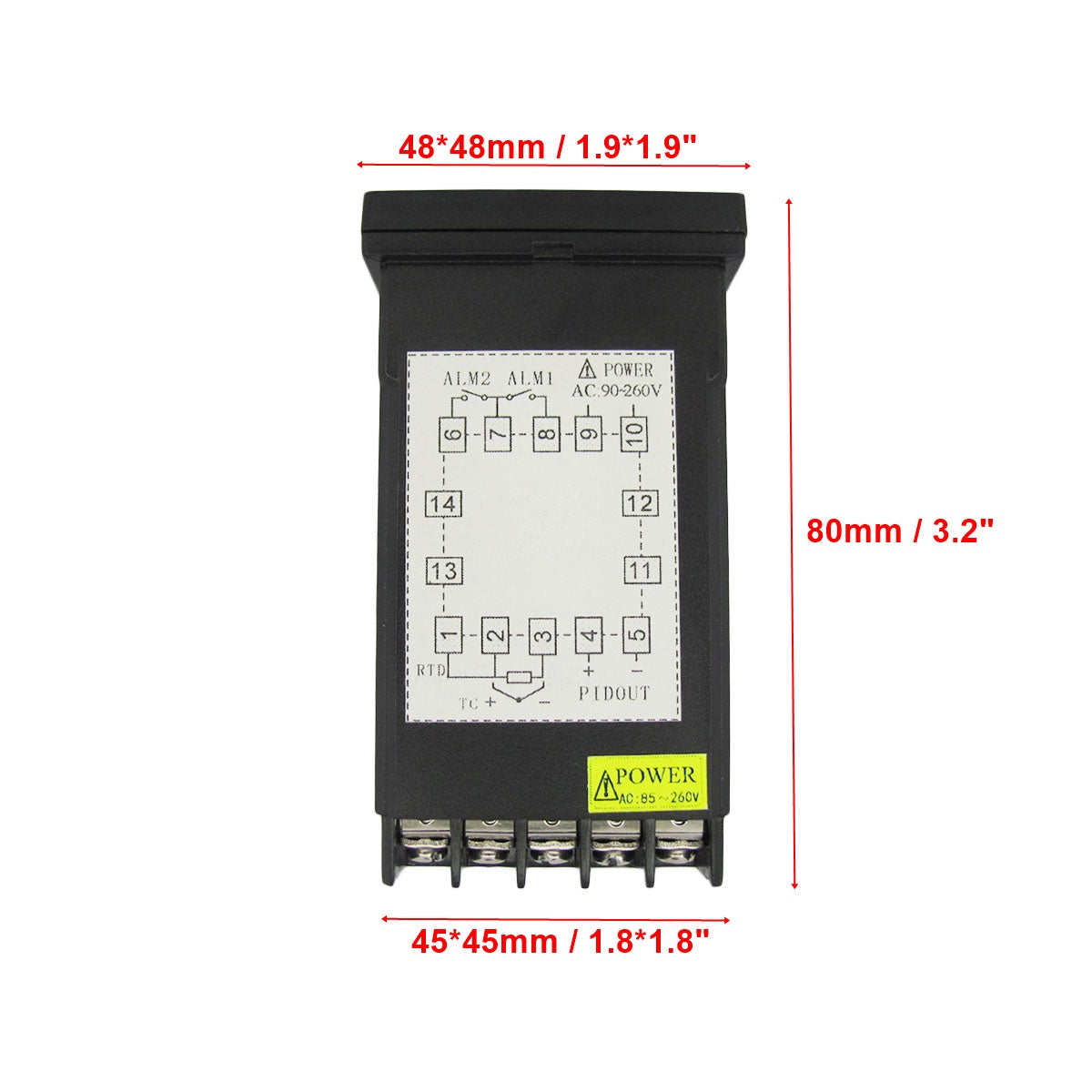

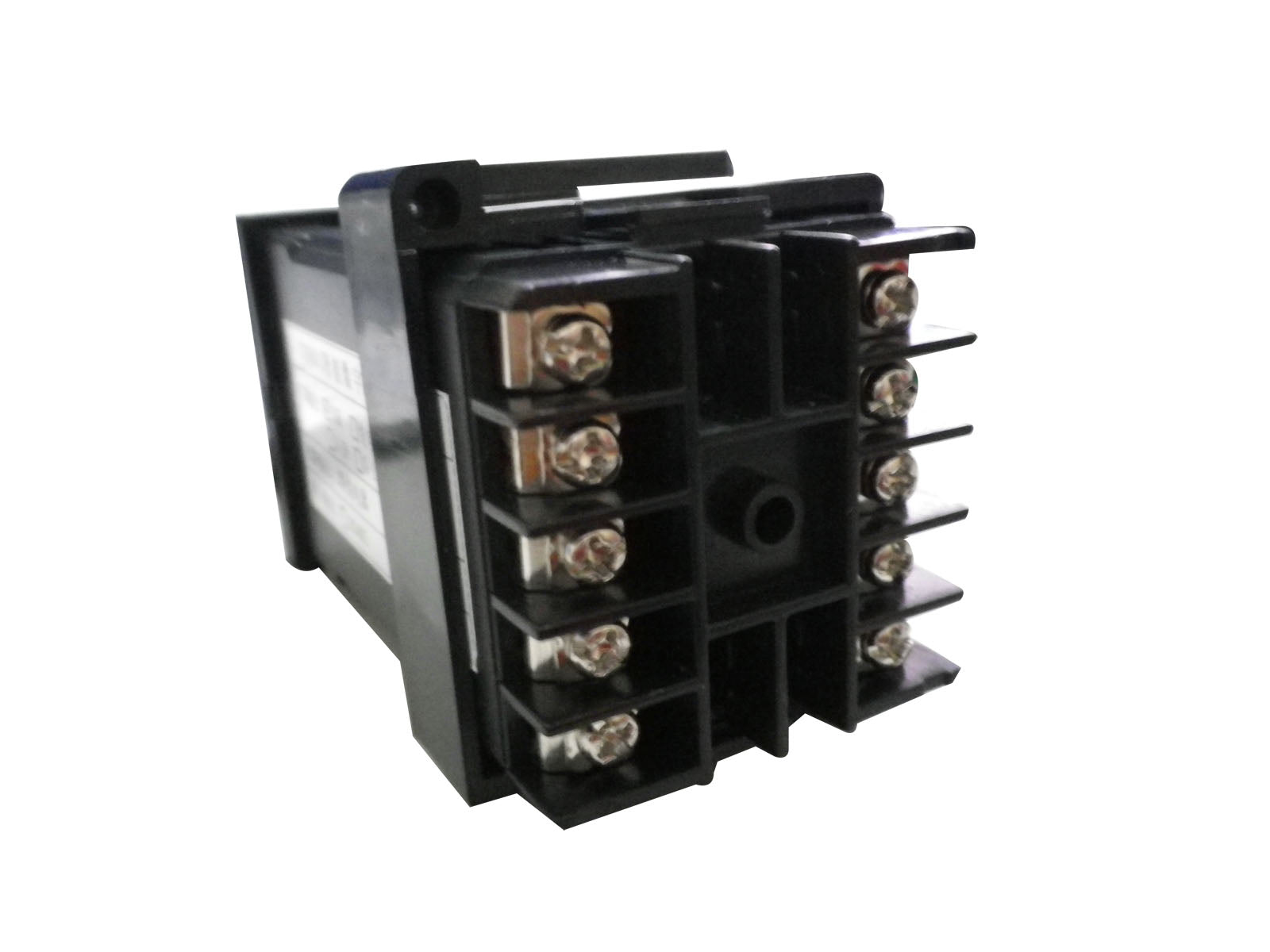

Dimensions

48(H) x 48(L) x 80(D)mm/1.9”(H) x 1.9”(L) x 3.15”(D)

Panel Cut

45 x 45 mm / 1.8” x 1.8”

Programmable Inputs (Display Range)

K

-200 ~ 1250 C

Wire 3/25

0 ~ 2300 C

E

-200 ~ 900 C

Wire 5/26

0 ~ 2300 C

S

0 ~ 1700 C

PT100

-200 ~ 600 C

B

-400~ 1800 C

Cu100

-50 ~ 150 C

J

0 ~ 750 C

Cu50

-50 ~ 150 C

T

-250 ~ 350 C

BA1

-200 ~ 650 C

R

0 ~ 1700 C

BA2

-200 ~ 500 C

N

-40 ~ 1200 C

G53

-50 ~ 150 C

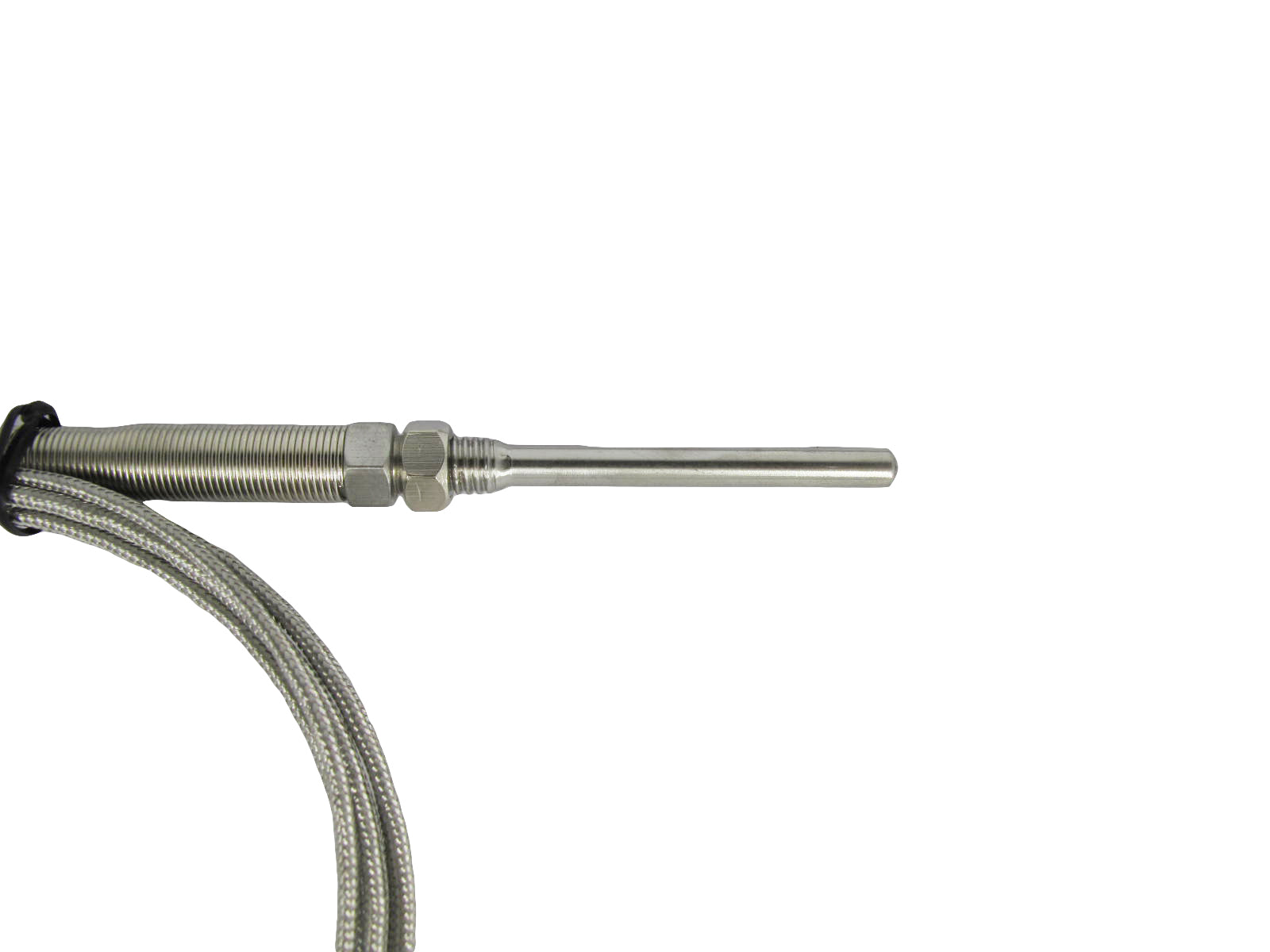

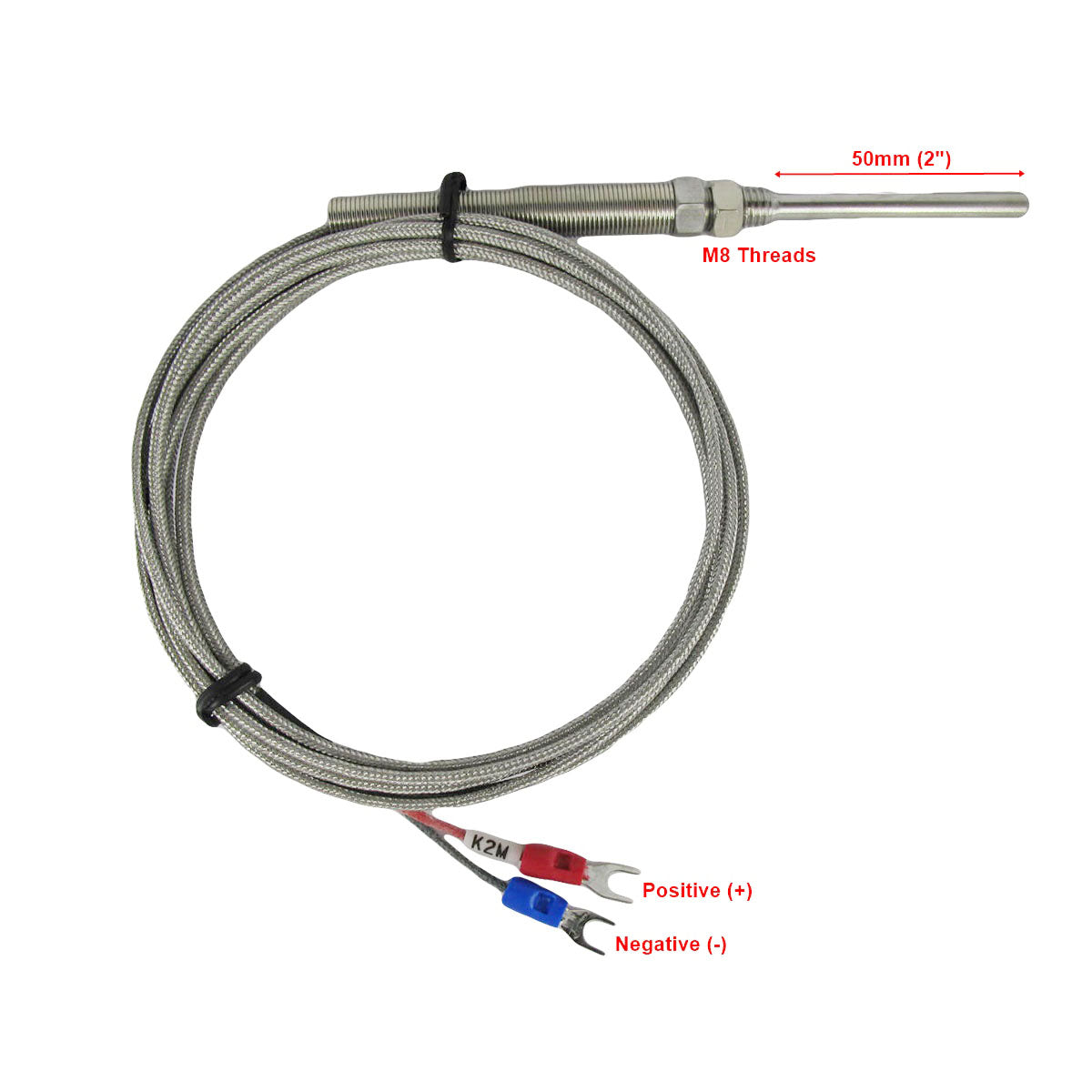

Temperature Sensor Description

Type

 K Type Thermocouple

Measuring Temperature

 -100 ~ 400 C ( -150 ~ 750F)

Probe Length

50mm (2”)

Probe Diameter

5mm (0.2”)

Threads Size

M8 threads with nut

Probe Material

Stainless Steel 304

Cable Length

2m (6.6’)

Cable Shealth

Fiberglass overbraided with Stainless Steel

Connector

Spade Connectors

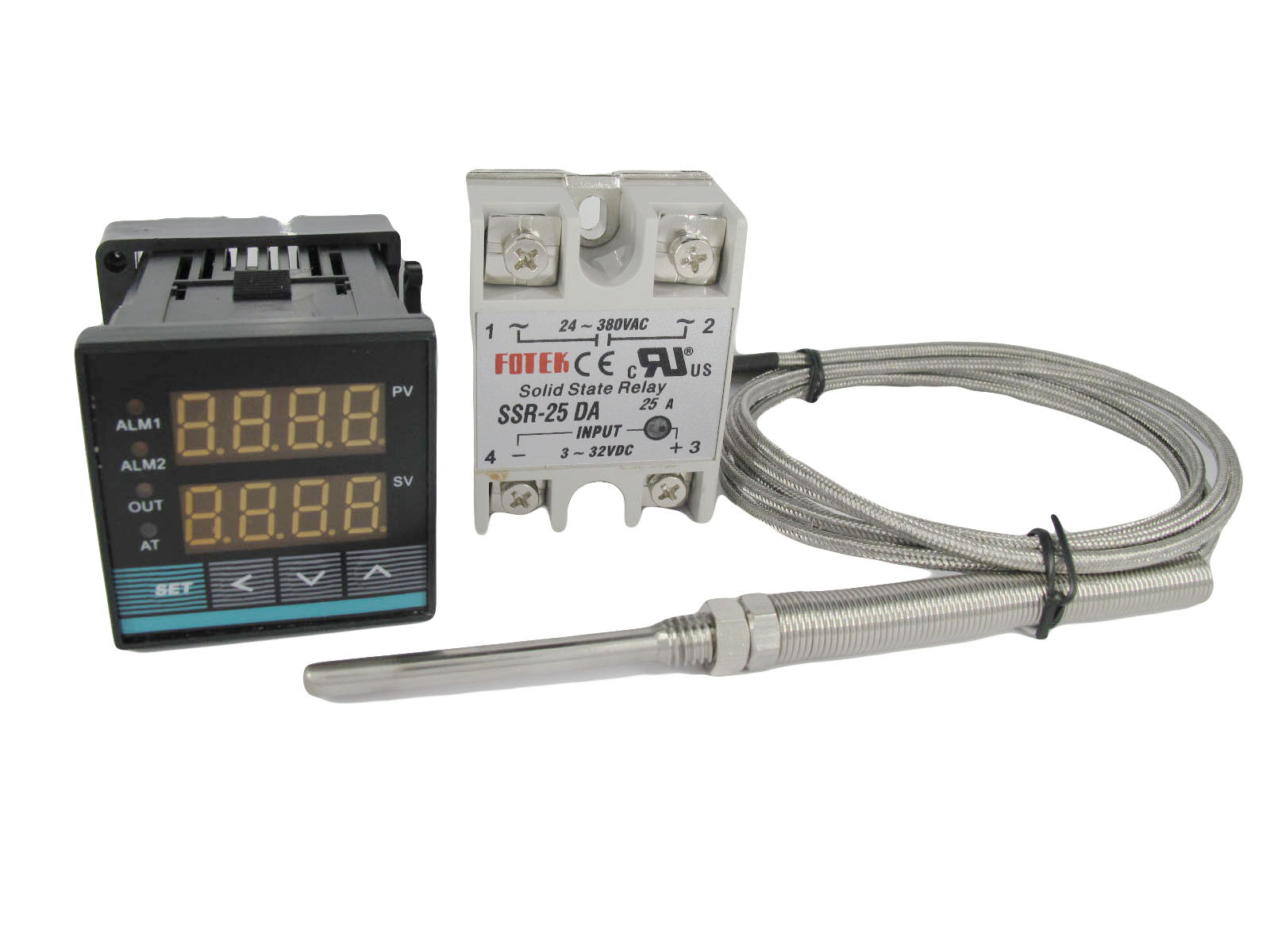

Solid State Relay (SSR) Specifications

Model

Fotek SSR-25DA

Input

3~32 VDC

Output

24~380 VAC

Current Ratings

25A
