Package Includes :
1*Windshield Repair Injector
1* Repair resin
2*Adhesive Seal
1*Pedestal
5*Curing Film
1*Razor Blade
1*Instruction Manual
Features:
- 100% Brand New
- DIY windshield repair kit is designed to fill the air cavity with a strong penetrating adhesive that will bond the loose glass and restore the visibility.
- The patented design evacuates the air to fill the cavities with specially formulated liquid glass, that distortion and bonds the loose glass preventing the damage from spreading
- Creates an invisible, undetectable repair in damaged automobile windshields or other laminated glass windows.
- Simple and easy to use, allows anyone to fix a damaged windshield or window
- Single ingredient - eliminates mixing.The air in the cracks will block the penetration of the repair fluid, and we have a vacuum function to quickly remove the air from the cracks.
Windshield repair instructions
1.Clean damaged area.
2. Mount seal t windshield.
3. Remove backing from seal, Peel backing from top side of adhesive seal.
4.Mount pedestal to adhesive seal
Line up pedestal with adhesive seal making sure tabs match up.
Press pedestal to glass.
5.Place resin into pedestal.
6.Connect injector to pedestal.
7.Lock plunger in vacuum position.
Hold injector with one hand,pull plunger upward with the other hand .
Lock plunger by engaging lower notch in plunger with spring clip.
Release hands and allow device to remain in locked postion.
8.Fill injector with air.
9.Move plunger to pressure.
Hold injector with one hand and rotate plunger releasing spring clip from lower notch.
Depress plunger downward engage upper notch with spring clip.

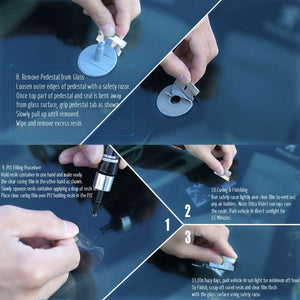

10.Remove pedestal from glass.
Loose outer edges of pedestal with a safety razor.
11.Pit Filling procedure.
12.Curing & finishing.
Run safty razor lightly over clear film to vent out any air bubbles.
Note: Ultra violet sun rays cure the resin. Park vehicle in direct sunlight for 15 minutes.
Note:
1.Avoid using in direct sunlight-work in shaded area.
2.Do not work on a hot windshield, park vehicle in shaded area and open windows to cool glass surface.
3.A safety razor is required to remove components and finsh repair.
Caution:Do not let resin come in contact with painted surfaces.
