Item Description |
|
|
Type |

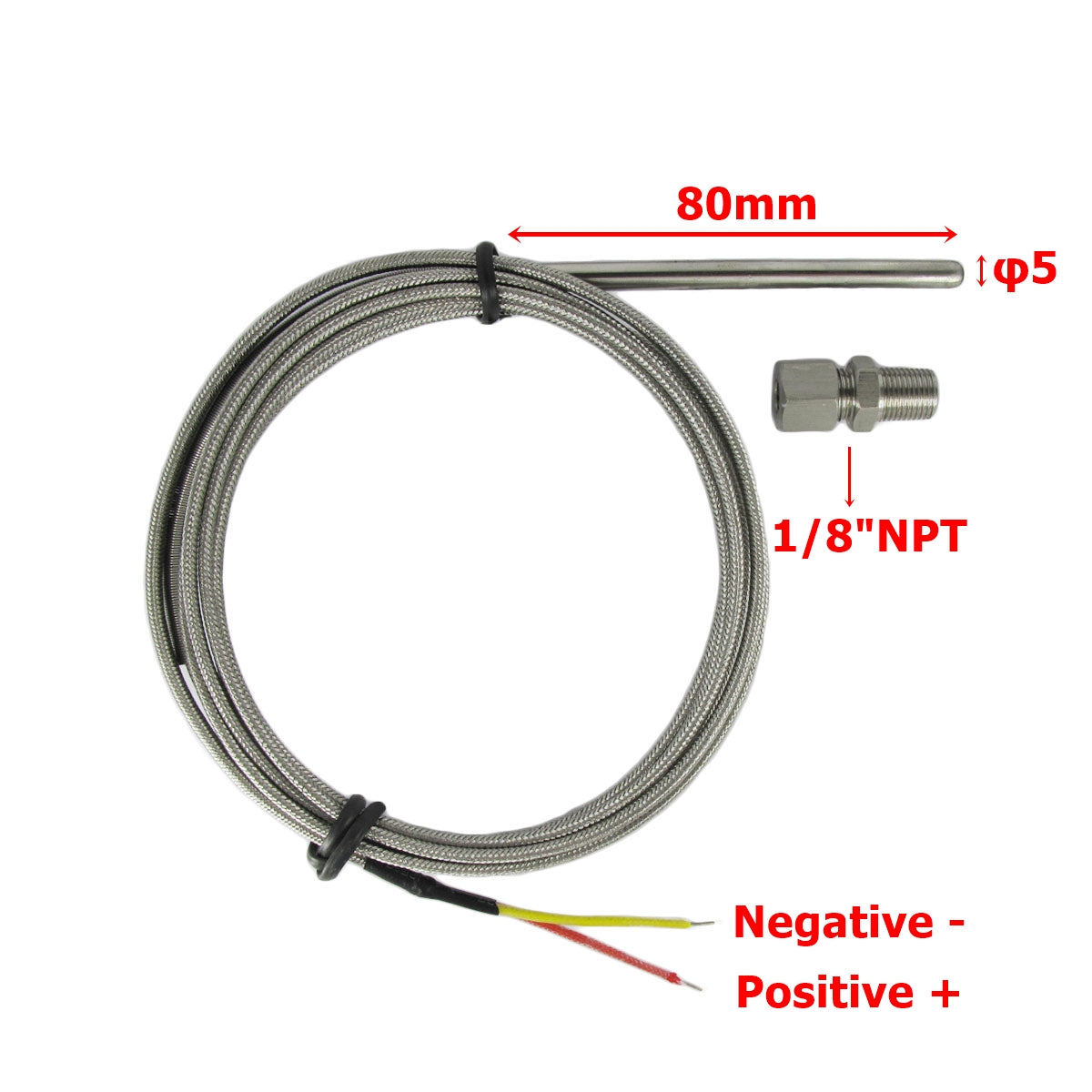

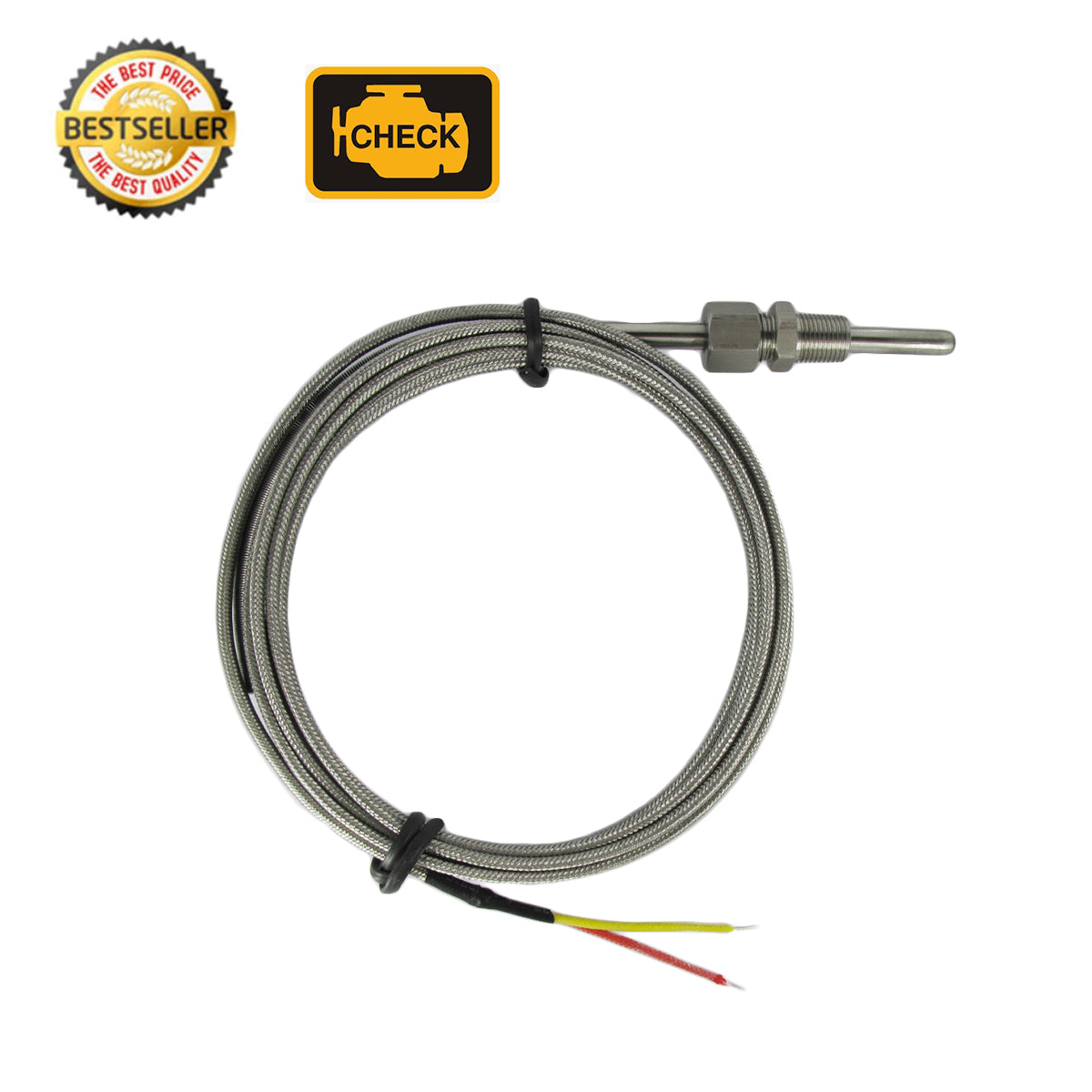

Ungrounded K Type Thermocouple |
|
Operating Temperature |
-100 ~1250 ℃ (-100 ~ 2300 ℉) |
|
Probe Material |
Stainless Steel |
|
Probe Diameter |
5mm (0.2”) |
|
Probe Length |
80mm (3.2”) |
|
Threads Size |
1/8” NPT |
|
Threads Lock |
Adjustable Compression Fittings (Adjustable Length) |
|
Cable Length |
1m (3.3’),2m (6.6’),3m(9.9’),4m(13.2’),5m (16.5’) |
|
Cable External Shielding |
Stainless Steel Braiding |
|
Cable Internal Insulation |
Fiberglass |
|
Cable Colour |
US Color Code : Yellow (+) Red (-) |
|
Connector |
Bare Wires |
Features
100% Brand New Item
Fits all our temperature controllers, EGT gauge with K type thermocouple input
Quotations of different lengths of lead wires are available upon request.
