Features
- 100% Brand New
- Simple and easy to Use, Activates the individual TPM sensor with the press of one button.

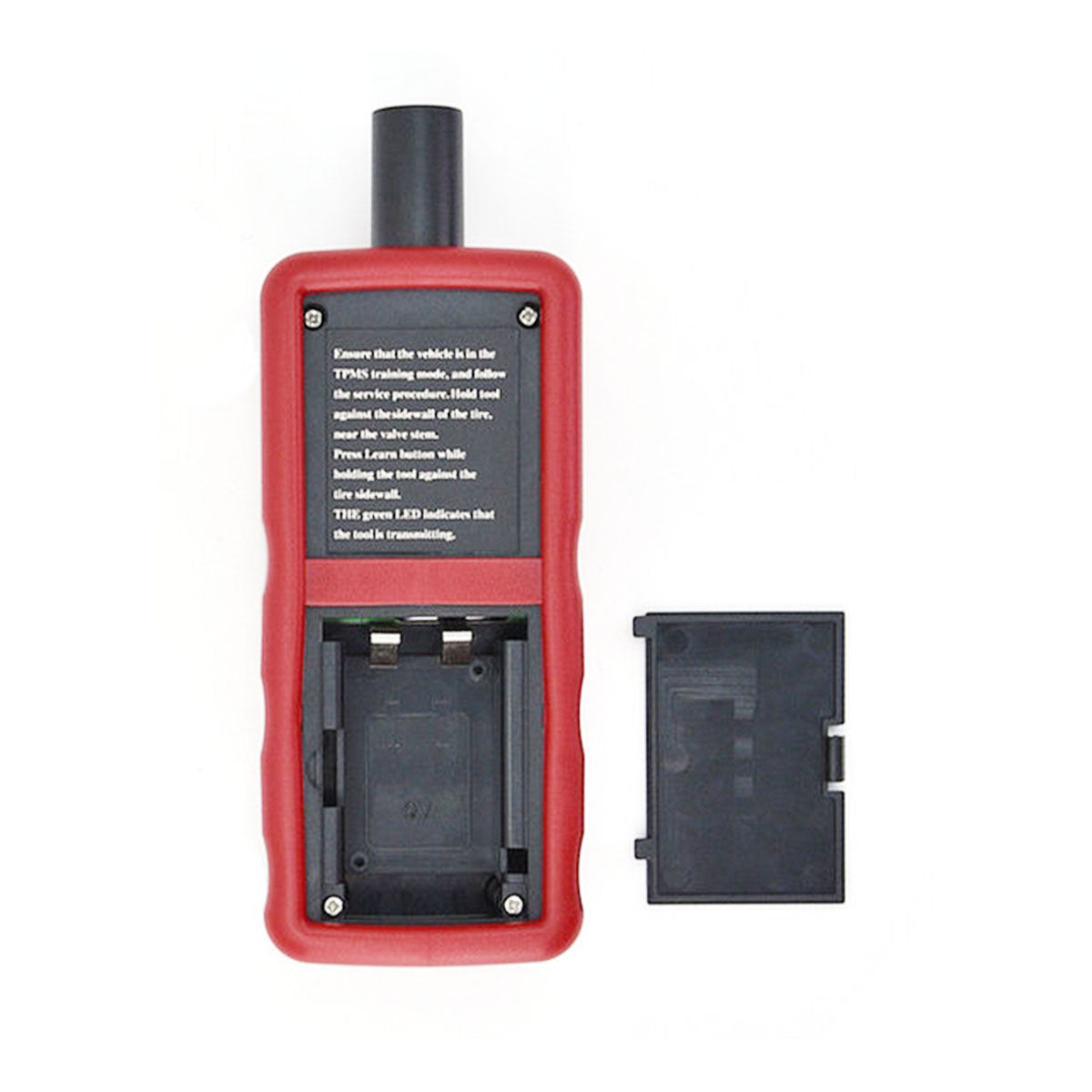

- Ensure that the vehicle is in the TPMS Learn Mode, and follow the service procedure. Hold tool against the sidewall of the tire, near the valve stem. Depress Learn button while holding the tool against the tire sidewall.
- EL-50449 Auto Tire Pressure Monitor Sensor TPMS Relearn Reset Tool OEC-T5 for Ford Series Vehicle 2007-2016, package does not include the charger and battery
To replace Ford car tire pressure sensor or tire pressure alarm or exchange tires,you need to carry out tire pressure reset operation.
Operation Procedures
1: Set the vehicle into the tire pressure training mode (plug the key, step on the parking brake, the car keys from the off to open 3 times, and then step on the parking brake, turn off the car keys, and then from the off to open three times; training mode for the vehicle to start the state of the three consecutive dangerous alarm), if you hear the speaker sounded that the training mode has been enabled;
2: Starting from the left front tire, the antenna of the dedicated tool for tire pressure monitoring is facing upwards against the tire sidewall near the rim of the valve stem to start the antenna. Press and release the start button and wait for the speaker to emit a chirp. Once the speaker is chirping, the sensor information is read and the turn signal to be read at the next position will light;
3: When the speaker is ringing and the right front turn signal light is on, the remaining three sensors repeat step (2) in the following order: 3.1. Right before 3.2. Right rear 3.3.Left rear;
4: When the left rear sensor has been read and the speaker is also also twice, the read process is completed and the body control module also exits the read mode.
Car Models Supported:
2007-2014 for Ford F-150
2008-2015 for Ford F-250 F-350 F-450 F-550 Super Duty
2007-2015 for Ford Mustang
2007-2014 for Ford Edge
2006-2015 for Ford Escape
2008-2015 for Ford Expedition
2006-2016 for Ford Explorer
2008-2015 for Ford Flex
2008-2015 for Ford Taurus
2008-2015 for Ford E-150 E-250 E-350 E-450 Econoline Vans
2008-2015 for Ford Fiesta
2008-2015 for Ford Focus
2008-2015 for Ford Fusion
2008-2011 for Ford Crown Victoria
2011-2015 for Ford Transit Connect
2006-2011 for Ford Ranger
2007-2015 for Lincoln MKX
2007-2015 for Lincoln MKT
2008-2015 for Lincoln MKZ
2008-2015 for Lincoln MKS
2008-2015 for Lincoln Navigator
2008-2011 for Lincoln Town Car
2007-2008 for Lincoln Mark LT
2006-2010 for Mercury Mountaineer
2006-2010 for Mercury Monterey
2006-2011 for Mercury Mariner
2006-2011 for Mercuy Grand Marquis
2006-2011 for Mercury Milan
