EGT Probe Sensors |
|
Sensors Type |
Ungrounded K Type Thermocouple |
Operating Temperature |
-300- 2300℉ / -200 – 1250℃ |
Probe Material |
Stainless Steel |
Probe Diameter |
0.2 inch / 5mm |
Probe Length (Front) |
3.2 inch / 80mm |
Probe Length (Bottom) |
1.2 inch / 30mm |
Threads Size |
1/8” NPT |
Threads Lock |
Adjustable Pressure Lock (Adjustable Length) |
Cable Length |
6.6 ft / 2m |
Cable External Shielding |
Stainless Steel Braiding |
Cable Internal Insulation |
Fiberglass |
Insulation Type |
Ungrounded |
Connector |
Bare Wire |

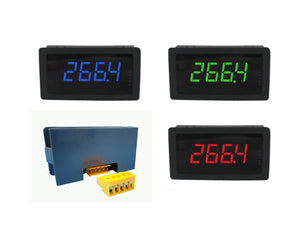

EGT Gauges |
|
Display Range |
-200~1250℃/-300 ~ 2300℉ |
Display Type |
4 Digit LED (Red, Blue, Green) |

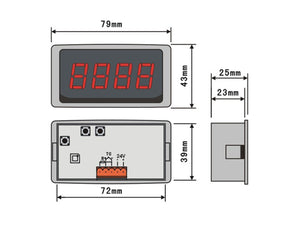

Dimensions |
79W x 43L x 25D mm (3.1" x 1.7" x 1") |
Panel Cut |
74 x 40mm (2.9" x 1.6") |
Accuracy |
+/- 1% |
Power |
12VDC |
Features
100% Brand New item
High quality stainless steel EGT probe against rust
Quotations of different lengths of lead wires are available upon request.
