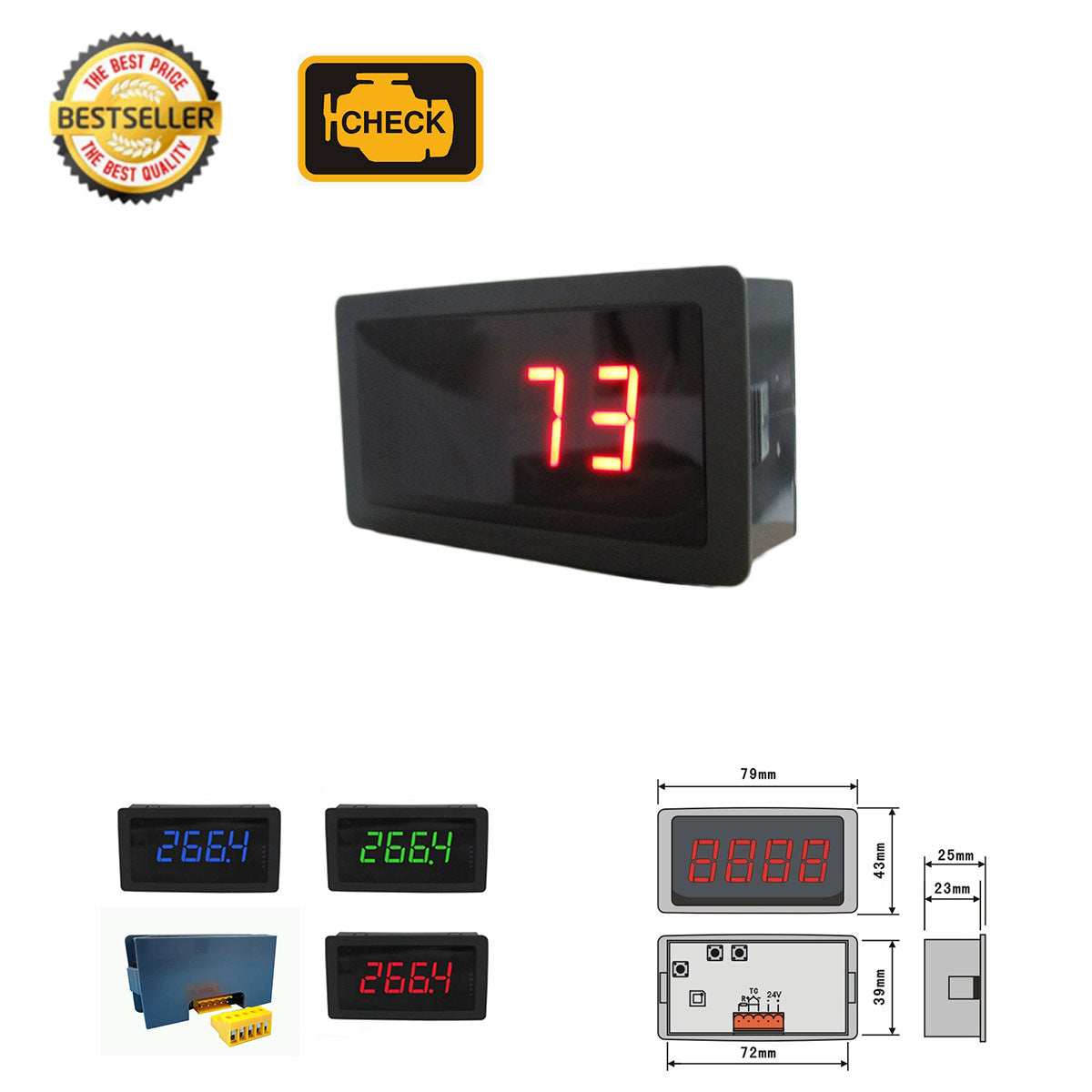

Item Descriptions |
|
|
Input Sensors |
K,J,PT100…. |
|
Temperature Display |
Celcius / Fahrenheit (switchable) |
|
Display Type |
3 1/2 digit LED |
|
LED Color |
Red, Blue, Green |
|
Dimensions |
79W x 43L x 25D mm (3.1”W x 1.7”L x 1”D) |
|
Panel Cut |
74 x 40 mm (2.9” x 1.6”) |
|
Sampling Time |
0.2 second |
|
Accuracy |
+/- 1 C |
|
Power |
5 ~ 15 VDC |
|
Programmable Inputs (Display Range) |
|||
|
K |
-200 ~ 1300℃ (-328 ~ 2372℉) |
T |
-200 ~ 400℃ (-328 ~ 752℉) |
|
E |
-200 ~ 900℃ (-328 ~ 1652℉) |
Wire 3/25 |
0 ~ 2300℃ (32 ~ 4172℉) |
|
S |
-50 ~ 1600℃ (-58 ~ 2912℉) |
Wire 5/26 |
0 ~ 2300℃ (32 ~ 4172℉) |
|
R |
-50 ~ 1600℃ (-58 ~ 2912℉) |
Wire |
0 ~ 2300℃(32 ~ 4172℉) |
|
J |
-200 ~ 750℃ (-328 ~ 1382℉) |
PT100 |
-200 ~ 600℃ (-328 ~1112℉) |
|
B |
350 ~ 1800℃ (662 ~ 3272℉) |
Cu50 |
-50 ~ 150℃ (-58 ~ 302℉) |
|
N |
-50 ~ 1200℃ (-58 ~ 2192℉) |
|
|
Features
100% Brand New Item
Suitable for EGT Gauge and general purpose meter
24VDC power is also available upon request
