Features:
100% Brand new

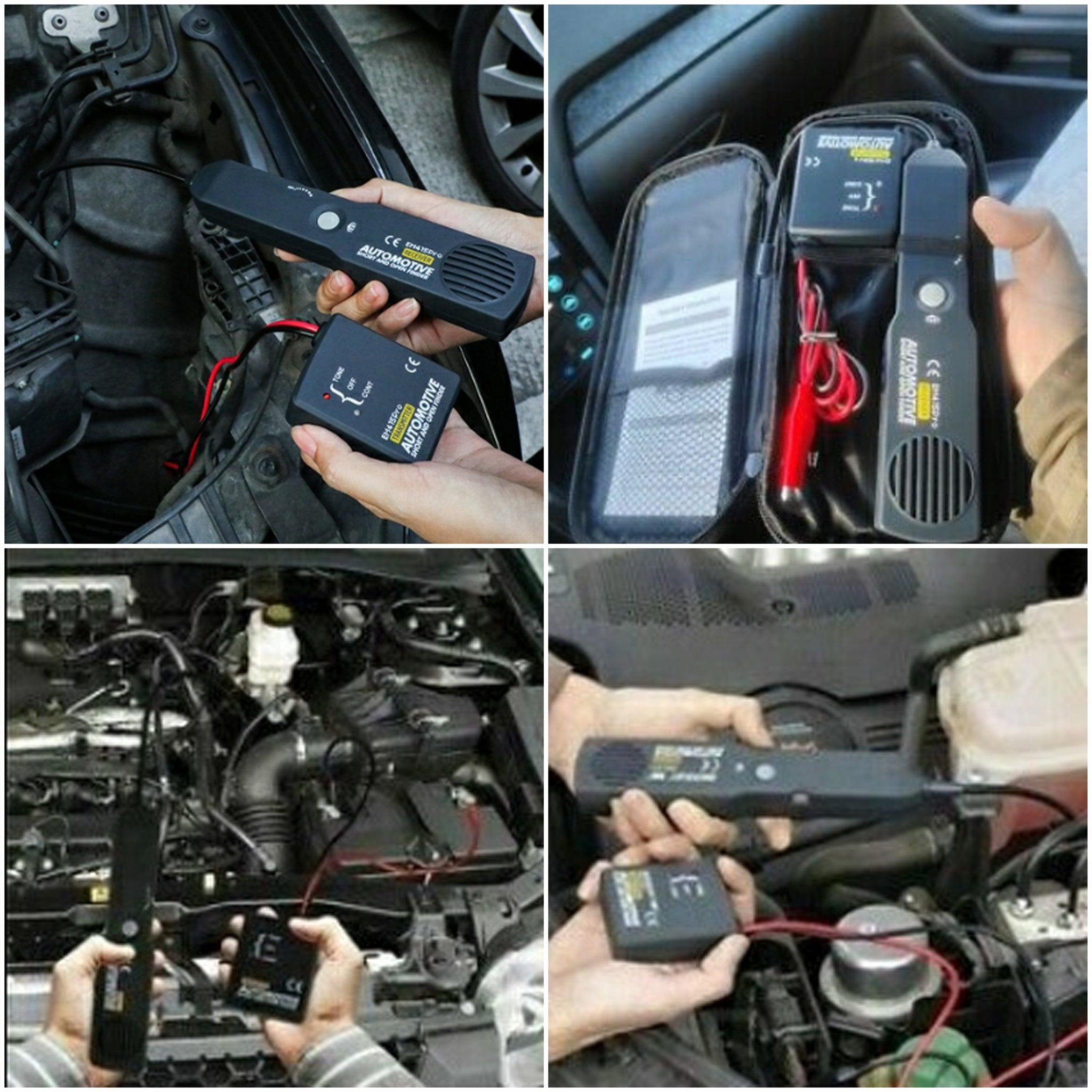

Easy to use: simply connect the transmitter in series with
the circuit or wire under test, (i.e.: in place of a blown fuse,
across a connector, in series with an open wire, a light bulb
socket, etc.), and scanning the circuit/wire with this tracers
To trace wires is now possible even inside bundles, co-
nduits, behind panels, under carpets, upholstery, etc
Easy to use simply connect the transmitter in series with
the circuit or wire under test, (i.e. in place of a blown fuse,
across a connector, in series with an open wire, a light bulb
socket, etc.), and scanning the circuit/wire with the tracers
flexible probe to find the trouble spot
42 V Ready: for use in the new generation of vehicles with
mixed or single 42 volt systems
Operates on DC voltages from 6 to 42 volts
Internally protected against power surges and overloads

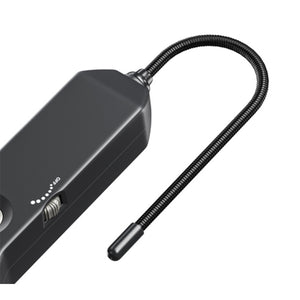

7" flexible probe allows reaching wires in congested places

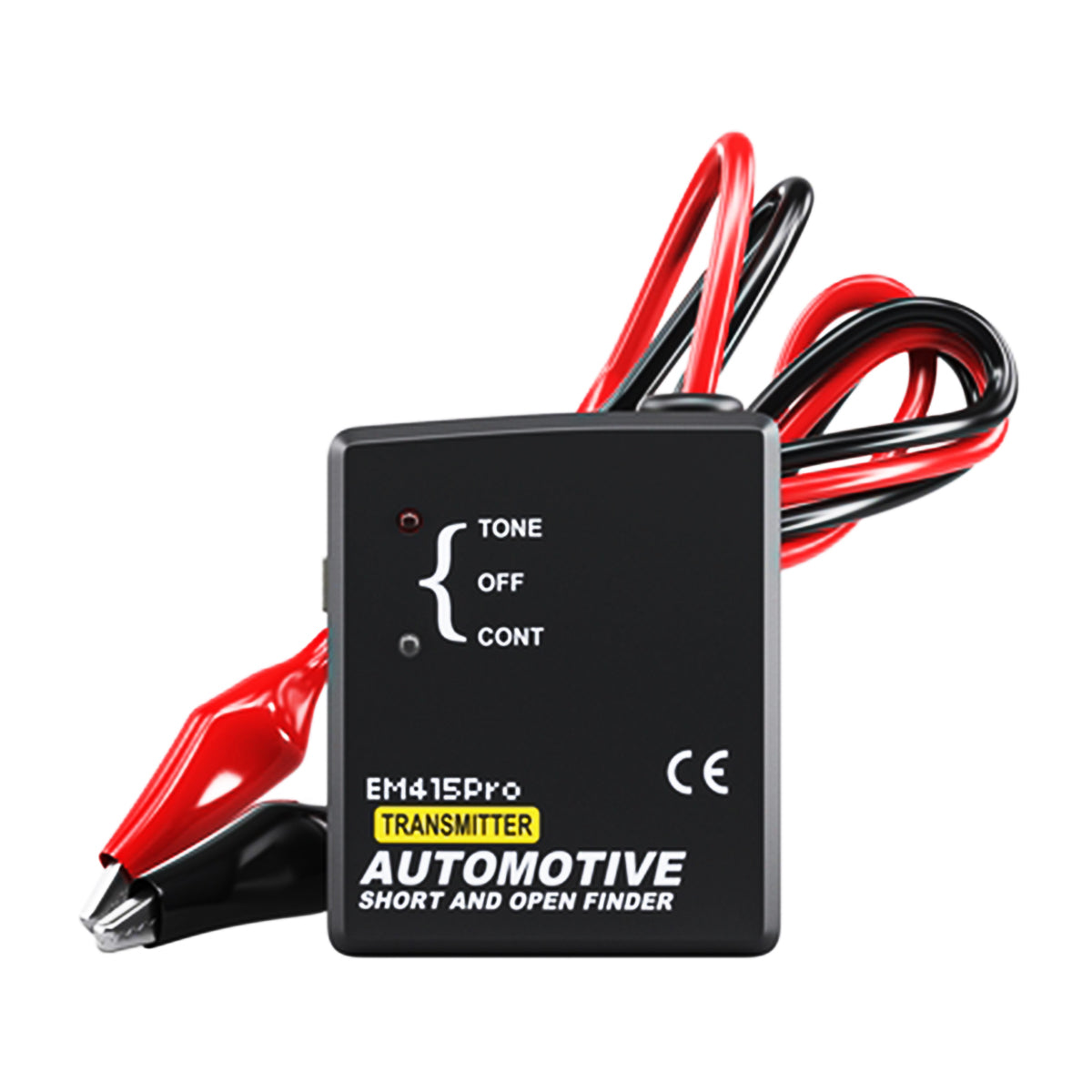

Transmitter and Receiver LEDs show open or short circuit
conditions
Adjustable sensitivity for all tracing situations
No wire piercing required, non-contact technology!
Principle

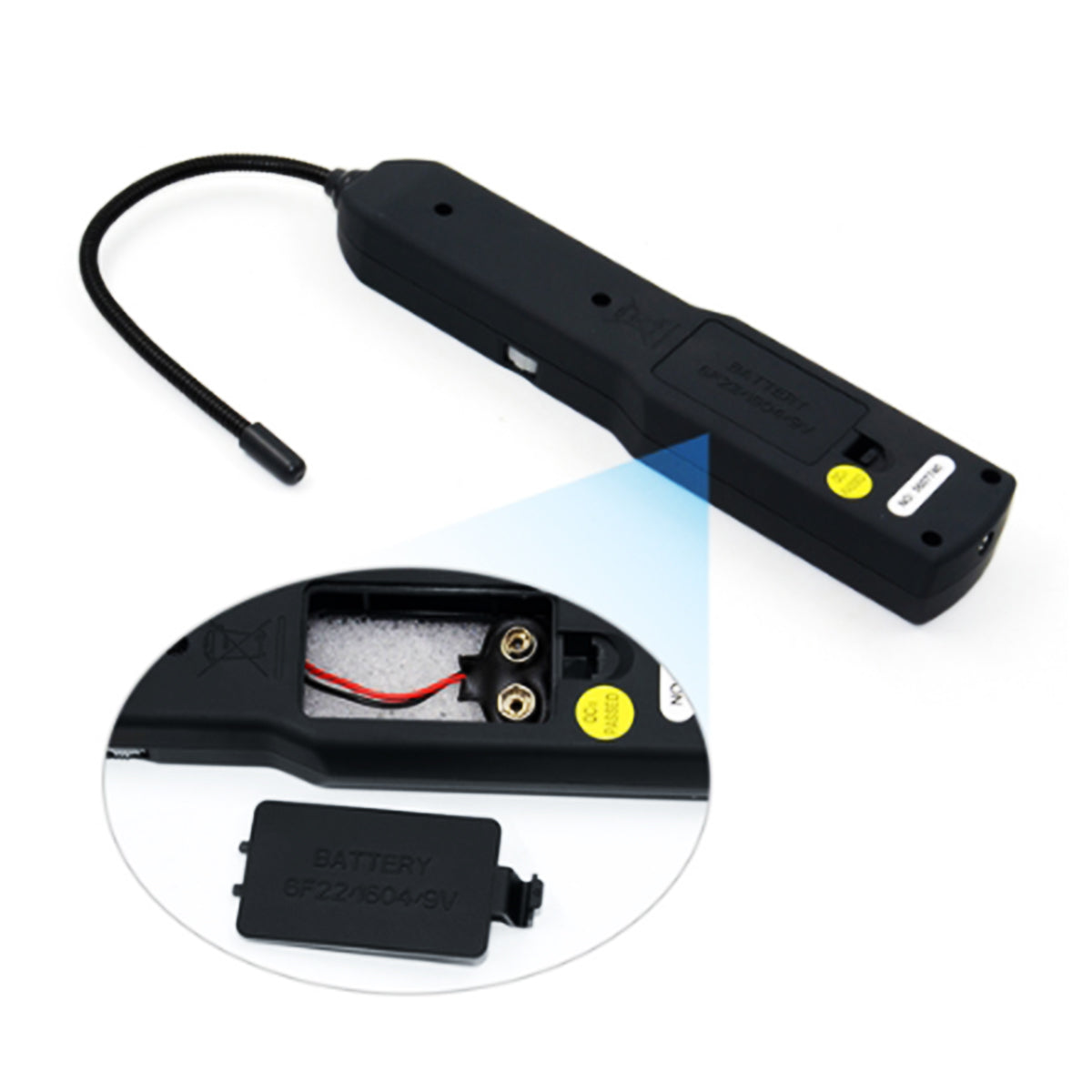

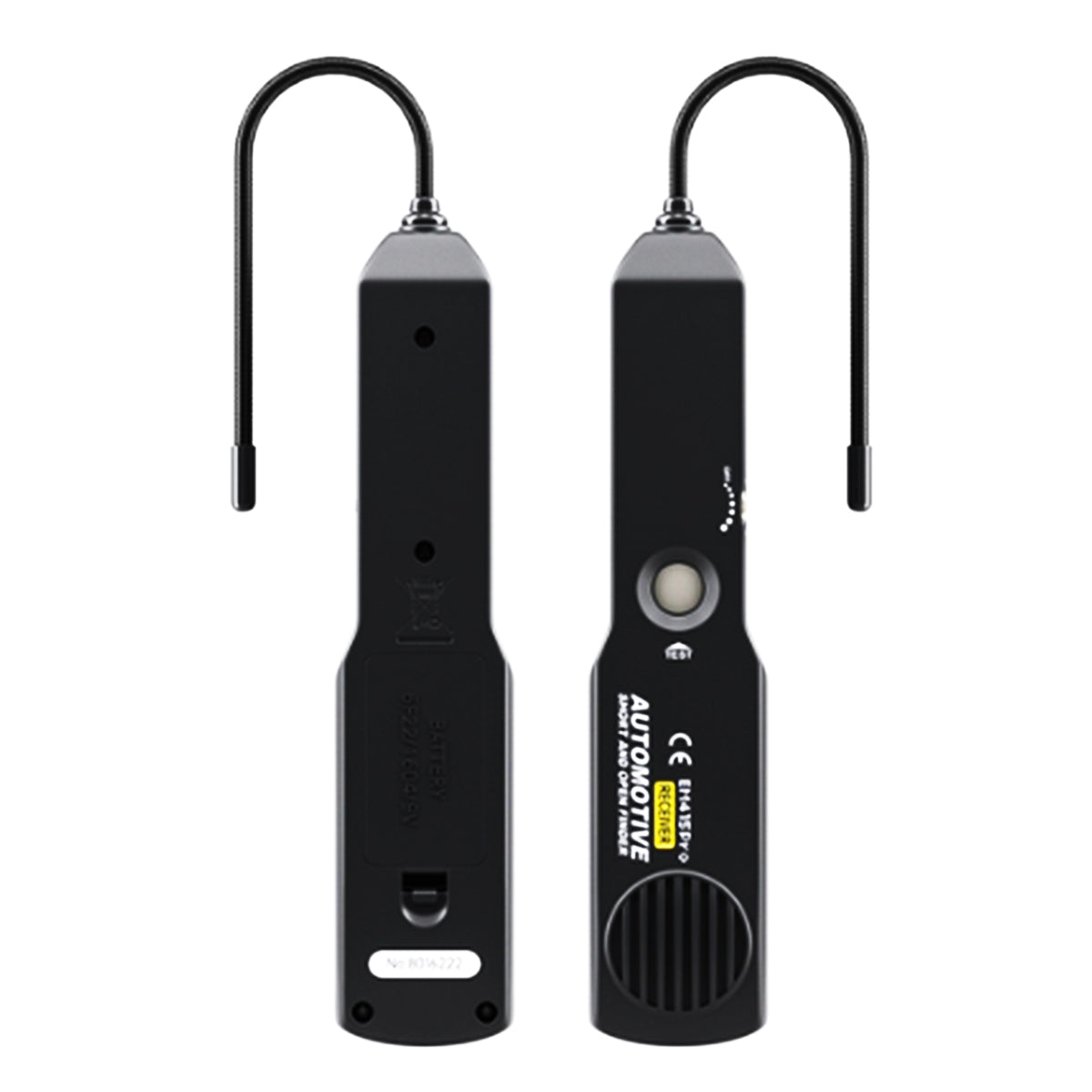

The probe of the receiver is built of coiled steel and may be bent as needed, in order to reach wires in ongested or difficult areas. Depending on the circuit characteristic and sensitivity settings the probe will pick up the signal from the wire in a range of positions. However, for the best
possible range the Receiver's probe tip (black cap) should be positioned perpendicular to the wire being traced and either above or below it.

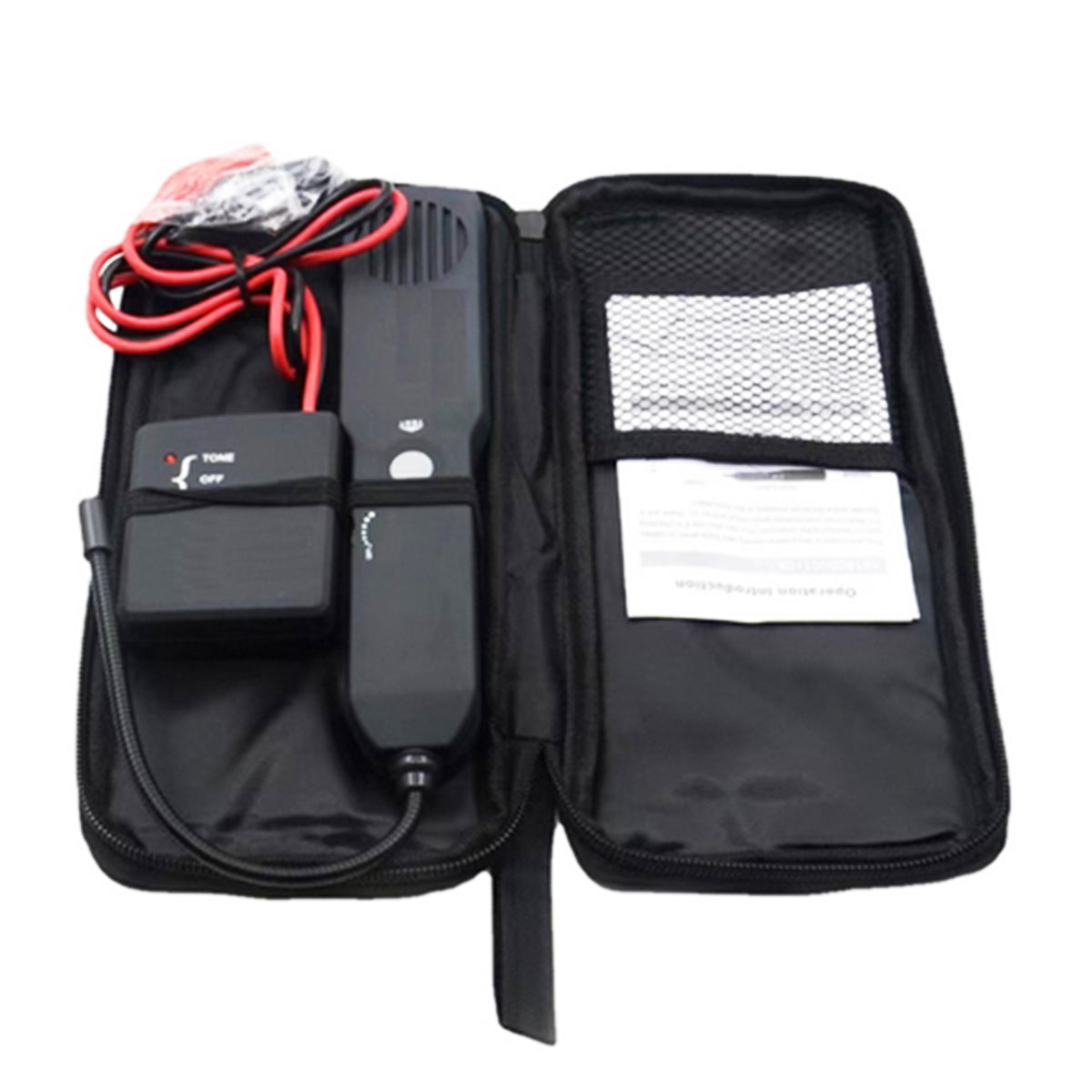

Package Included

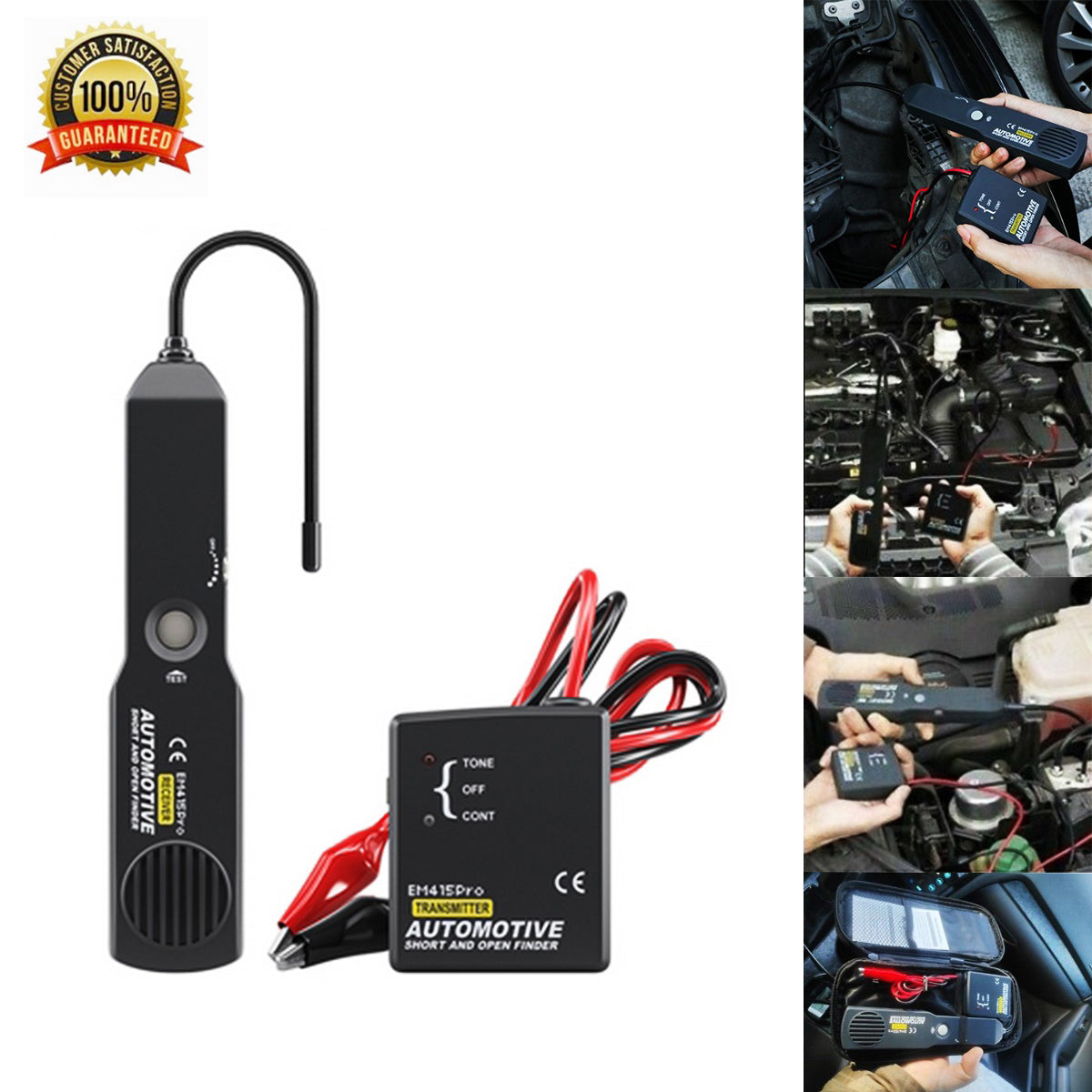

1 x Automotive Short and Open Finder (battery not included)
1 x Instruction Manual
